Category | Crosscountry | |
Weight | 26.3 lbs | |
Frame | Carbon | |
| RockShox Judy Gold RL | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Magura Hydraulic Disc | ||
| NX Eagle | ||
Drivetrain | 1 × 12 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

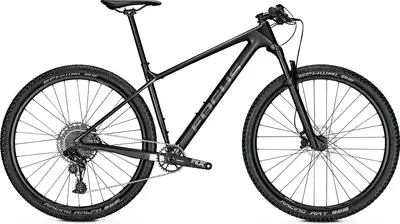

Summary | The Focus RAVEN 8.6 is a 29″ carbon frame hardtail crosscountry bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Carbon frame, PF30 BB, 148x12 mm thru axle, internal cable routing, Post Mount 160 mm BB Standard: PF30, Press Fit | |
|---|---|---|
Fork | Rock Shox Judy Gold RL 29 Boost, OneLoc remote, 15x110 mm, 51 mm rake, 100 mm travel Travel: 100mm Spring Type: Air | |
Bottom Bracket | SRAM DUB | |
Headset | Acros AIX-322, tapered, IS 42/286-IS52/40 | |
Stem | BBB Rider BHS-109 Deluxe, 31.8mm, 7degree | |
Handlebar | BBB Horizon BHB-108, aluminium, flatbar, 720mm, backsweep: 9degree | |
Saddle | FOCUS Race SL | |
Seatpost | BBB Deluxe, Aluminium, 27,2mm, 350mm Type: Rigid | |
Grips | FOCUS SL |
Rear Derailleur | SRAM NX Eagle, 12-speed | |
|---|---|---|
Crank | SRAM NX Eagle | |
Shifters | SRAM NX Eagle, 12-speed | |
Cassette | SRAM PG-1230 Eagle, 12-speed | |
Chain | SRAM NX Eagle | |
Brakes | Magura MT2 Type: Magura Hydraulic Disc | |
Brake Levers | Magura MT2 |
Rims | Rodi Viper 21 | |
|---|---|---|
Front Hub | Novatec D041, 15x110 mm | |
Rear Hub | Novatec D162 Disc, 12x148 mm | |
Tires | Schwalbe Racing Ralph Performance, 57-622 |
