    Z52012 Felt
    Recommended
    MSRP
    $2,299
    Where to Buy
    —
    $1

    At

    Category
    		Race
    Weight
    		18.2 lbs
    4.5
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Rim
    		105
    Drivetrain
    		2 × 10
    Brand Site
    Summary

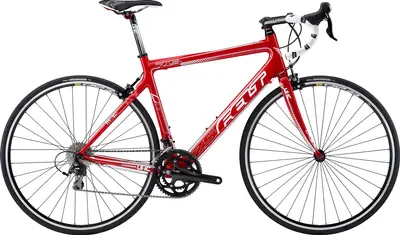

    		The Felt Z5 is a carbon frame race bike with upper mid-range components and shimano rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Z5
    Other Race bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    Z5

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Z52012 Felt
    Frame

    Felt Endurance Road UHC Performance MMC carbon fiber w/ 3KP weave, machined threaded aluminum BB shell, external cable routing, forged aluminum dropouts & replaceable derailleur hanger

    BB Standard: BSA, 68mm, Threaded

    Fork

    Felt UHC Performance fork, carbon fiber steerer tube, crown, blades, & forged aluminum dropouts, 461g

    Shock

    n/a

    Bottom Bracket

    Shimano Hollowtech-II

    Headset

    FSA 1.125"" integrated, w/ aluminum 25mm conical spacer, 2 X 10mm aluminum headset spacers, 1 x 5mm aluminum headset spacer, Felt VA aluminum top cap & 7075 anodized aluminum bolt

    Stem

    Felt VA 6061 aluminum 3D forged +/-16° or +/-4° rise, Ø31.8mm bar clamp, custom eccentric variable angle adjustable shim, 173g; 51cm=80mm, 54cm=90mm, 56cm=100mm, 58cm=110mm, 61cm=110mm

    Handlebar

    Felt VS 6061 aluminum w/ Felt Variable Shape ergonomic drop, Ø31.8mm, 51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm

    Saddle

    Felt VS road saddle w/ nylon injection molded base, superlight multi-density foam, embossed cover, & hollow Cr-Mo rails

    Seatpost

    Felt UHC Performance carbon fiber post, forged aluminum head, lightweight twin side clamp bolt design, Ø27.2mm, 330mm

    Type: Rigid

    Pedals

    n/a

    Grips

    Felt gel tape w/ Felt logos

    Groupset
    Rear Derailleur

    Shimano 105 SS short cage

    Front Derailleur

    Shimano 105 braze-on

    Crank

    Shimano 105 Compact, 50/34T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

    Shifters

    Shimano 105 STI

    Cassette

    Shimano 12-30T

    Chain

    Shimano 10 speed

    Chain Guide

    n/a

    Brakes

    Shimano R561 Super SLR dual pivot w/ cartridge brake pads

    Type: Shimano Rim

    Brake Levers

    Shimano 105 STI

    Wheels
    Rims

    MAVIC CXP-22S aluminum w/ machined UB Control braking surface & wear indicator laced 32H front, 32H rear

    Spokes

    Swiss stainless steel laced radial front, 3x rear w/ aluminum nipples

    Front Hub

    Felt premium sealed bearing forged aluminum w/ Felt quick release, 32H

    Rear Hub

    Felt premium sealed bearing forged Shimano 9/10 speed compatible freehub w/ Felt quick release, 32H

    Tires

    Vittoria Zaffiro Pro Slick, 700c x 25c

    Accessories
    Fenders

    n/a
