    Q5202011 Felt
    Recommended
    MSRP
    $549
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    3.2
    Frame
    		Aluminum
    		Suntour XCT
    Wheels
    		Aluminum
    Wheel Size
    		26″
    		Tektro Mechanical Disc
    		Alivio, Altus
    Drivetrain
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site
    Summary

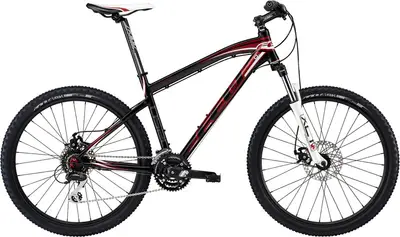

    		The Felt Q520 is a 26″ aluminum frame hardtail crosscountry bike with mid-range components and tektro mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Q5202011 Felt
    Frame

    Felt Q Series 6061 butted Aluminum, Dynaform Top and Down Tube: oversized Semi-Integrated Head Tube, Replaceable Derailleur Hanger, Rack & Fender Mount, Disc Brake Specific

    Fork

    SR Suntour SF11-XCT-V3-MLO 100mm Travel: Mechanical lockout. Hi-Ten 1-1/8 Steer Tube, Forged + CNC 6061 Crown, Hi-Ten 28mm Stanchion,New Spring seal, 126mm Pitch, Leading Axle, One-Piece Aluminum Lower + Brace, Two Sides Coil Spring + MCU with Preload Adjust, Disc Brake Specific lowers

    Travel: 100mm

    Spring Type: Coil

    Shock

    N/A

    Bottom Bracket

    Sealed Cartridge

    Headset

    Semi-Integrated 1-1/8 Aheadset: Steel Cups, Caged Bearing, with Felt Tornado Alloy Top Cap, Custom Curved 1 x 15mm + 2 x 5mm Straight Washers

    Stem

    Felt MTB oversized 3D-Forged Design: 4-Bolt Handlebar Clamp, with Hole in Front Clamp, 1-1/8 Threadless, for 31.8mm Handlebar, 7 Degree Rise, with CP Cromo hardware Sizes; 13.5-17.5=90mm;19.5-21.5=110mm

    Handlebar

    Felt MTB XC Riser bar: Plain guage 6061 Aluminum 31.8mm bar bore,Widths: 13.5=580mm, 15.5=580mm 17.5=580mm, 19.5=600mm, 21.5=620mm.

    Saddle

    Felt Mountain Design: Low Side Profile Look with Comfort Fit Top, double-Density Base, Satin Steel Rails

    Seatpost

    Felt Alloy Micro-Adjust: 6061 Alloy Low-Profile Forged Head & Extruded Rail Clamps, Sizes: 13.5-15.5 =30.9mm x 350mm , 17.5-21.5 =30.9mm x 400mm

    Type: Rigid

    Pedals

    VP 992-S Steel Cage with PP Body

    Grips

    Felt double-density wing grips: Kraton rubber base, Pruven rubber center, Color matched

    Groupset
    Rear Derailleur

    Shimano Alivio: RD-M410

    Front Derailleur

    Shimano FD-M310

    Crank

    CW9-XCT-V2-T302:-PBG crankset with forged Alloy arms 8-speed with Interchangable steel chainrings 42T/32T/22T 48mm Chainline with black chainguard, Lengths: 13.5-15.5=170mm; 17.5-21.5=175mm

    Shifters

    Shimano ST-EF51: EZ-Fire Shifer/Brake lever 8 speed

    Cassette

    Shimano CS-HG40 8-speed 11-32

    Chain

    KMC Z72 8-speed

    Chain Guide

    n/a

    Brakes

    Tektro IO Mechanical Disc Brake: Single Piston, 180mm front/ 160mm rear Stainless Steel Round Rotor

    Type: Tektro Mechanical Disc

    Brake Levers

    2 Finger with Shifter

    Wheels
    Rims

    doublewall Aluminum for Disc Brake: 26 x 1.5 x 32H

    Spokes

    Stainless 14g with Brass Nipples

    Front Hub

    Forged Aluminum, for Disc Brake: with Alloy Quick-Release Lever 32 Hole

    Rear Hub

    Forged Alloy For Disc Brake, 8/9 speed Cassette Type: 32H, with Alloy Quick Release

    Tires

    FELT TAR All Trail: 26 x 2.1 30TPI Wire Bead, with Shraeder valve Tubes

    Accessories
    Fenders

    N/A
