Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Today’s Deals
Bike Comparison
    Recommended
    MSRP
    $559
    Where to Buy
    $1

    At

    Category
    Crosscountry
    Weight
    31.0 lbs
    3.1
    Frame
    Aluminum
    Suntour XCT
    Wheels
    Aluminum
    Wheel Size
    26″
    Tektro Mechanical Disc
    Alivio, Altus
    Drivetrain
    3 × 8
    Suspension
    Hardtail
    Front Travel
    80mm
    Brand Site
    Summary

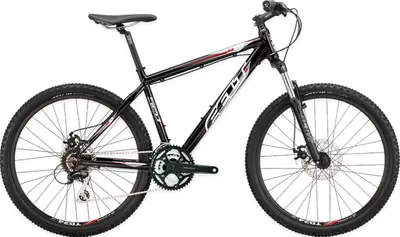

    The Felt Q520 is a 26″ aluminum frame hardtail crosscountry bike with mid-range components and tektro mechanical disc brakes.

    Ask 99 Spokes

    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    30 mph

    Q520

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Frame

    Felt 6061 Externally Butted Aluminum, Round Tapered Top Tube, A-Style Seatstay Design, Oversized Semi-Integrated Head Tube, Replaceable Derailleur Hanger, Rack & Fender Mounts, Basta-Lock, Disc Brake Specific

    Fork

    SR Suntour XCT-MLO With Lockout 80mm travel, Pre-load, Internal spring, Alloy Crown, Alloy lower with STKM Stanchions. With spring seal design, Disc Specific Lowers.

    Travel80mm

    Spring TypeCoil

    Bottom Bracket

    TH Cartridge Type, Cr-Mo Axle & Cup

    Headset

    Semi-Integrated 1-1/8" Aheadset--Steel Cups, Caged Bearing, with Alloy Laser Top Cap, Custom Curved 1 x 15mm + 2 x 5mm Straight Washers

    Stem

    FELT One-Piece Melt-Forged Design, 1-1/8" Threadless Aluminum, 4-Bolt, 15 Degree Rise. CP Hardware BLAST BLACK Extensions: 13.5/15.5/17.5=90mm; 19.5/21.5=110mm

    Handlebar

    30mm Rise, 6 degree Bend, with Felt Logos. Widths: 13.5-17.5=580mm; 19.5=600mm; 21.5=620mm

    Saddle

    Felt "RXC" Comfort, Low Side Profile Look with Wide/Flat/Plush Top, Double-Density Base, Satin Steel Rails

    Seatpost

    Felt Alloy Micro-Adjust, 100% Black, 6061 Low-Profile Forged Head & Extruded Rall Clamps, 27.2mm x 350mm (CEN)

    TypeRigid

    Pedals

    MTB Design Steel Cage / PP Body

    Grips

    Felt Dual-Density Extra-Soft & Sticky (Recipe #25)center with Hard Outer Durometer, 130mm Length, 30mm OD, Grey outer/Blk grip section

    Groupset
    Rear Derailleur

    Shimano Alivio Top Normal RD-M410

    Front Derailleur

    Shimano FD-M310 Dual Pull

    Crank

    Shimano FC-M311-L Non Series 3 Piece crank, Melt-Forged Aluminum Arms, 42/34/24T, Black Resin Spider cover, Steel/Steel/Steel, Black/Black/Silver, with Shimano Printed Logo only, includes Capless Axle Bolts, Riveted, 50mm Chainline with 123mm Axle, 13.5-15.5=170mm; 17.5-21.5=175mm, With Chainguard

    Shifters

    Shimano Altus ST-EF50 EZ-Fire Plus, 24 Speed

    Cassette

    SRAM PG-850, 8-Speed Cassette, 11-32T

    Chain

    KMC Z7 (8-Speed) Silver Outer

    Brakes

    Tektro IO, Stainless Rotors: 180mm Front; 160mm Rear

    TypeTektro Mechanical Disc

    Brake Levers

    Shimano Altus EZ-fire Plus, Integrated w/Shifters

    Wheels
    Rims

    ALEX TD-24 Disc Doublewall, 26 x 1.5 x 32H, 24mm Width, Presta Valve, Black Anodized

    Spokes

    Sandblast Black Stainless 14G, Brass Nipples

    Tires

    FELT THC XC Trail Highway City 26 x 2.1 30TPI Wire Bead, with Presta valve Inner Tubes
