Bike Comparison
    Outfitter2018 Felt
    Recommended
    MSRP
    $5,499
    Where to Buy
    —
    $1

    At

    Category
    		Fat, E-Bike
    Weight
    		51.9 lbs
    4.0
    Frame
    		Aluminum
    Fork
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		26″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		X1
    Drivetrain
    		1 × 11
    Brand Site

    feltbicycles.com

    Summary

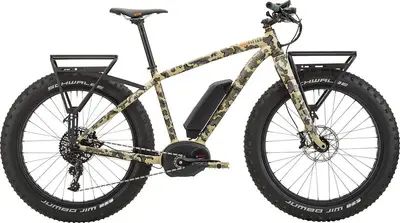

    		The Felt Outfitter is a 26″ aluminum frame rigid fat e-bike with ultra high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Outfitter
    Other Fat bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    12 mph

    Outfitter

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Outfitter2018 Felt
    Frame

    Felt Electric MTB Fat Tire, Bosch-specific, double-butted 6061 aluminum, ControlTaper headtube, full internal cable routing, 190 x 12mm Maxle dropouts, disc-brake specific, rear kickstand mount

    BB Standard: Bosch, Press Fit

    Fork

    Felt Fat Tire rigid, oversized hollow crown, Hydroformed 6061 aluminum blades, aluminum tapered steerer, 150 x 15mm Maxle style dropouts, disc-brake specific, eyeleted

    Shock

    n/a

    Bottom Bracket

    Bosch Performance eDrive Unit, 350W output, 20 mph

    Headset

    FSA No.57E/62 1.125" - 1.5" Aheadset, semi-integrated upper & external lower extender Cup: ACB water sealed bearings, w/ Felt Tornado aluminum top cap, custom 1 x 12,3mm curved, 2 x 5mm straight washers

    Stem

    Felt MTB SL design 3D-forged aluminum w/ 4-bolt handlebar clamp, 1-1/8" threadless: Ø31.8mm handlebar, 7° rise, w/ black Cr-Mo hardware S = 80mm M = 90mm L = 100mm

    Handlebar

    Felt MTB 6061 butted aluminum riser: Ø31.8mm, 15mm rise x 9° sweep, 720mm width

    Saddle

    WTB Silverado Race: w/ DNAX padding & Cr-Mo rails

    Seatpost

    Felt 2-bolt micro-adjust butted 6061 aluminum, Ø30.9mm x 15mm offset: S = 350mm M/L = 400mm

    Pedals

    MTB aluminum body & cage, toe clip compatible

    Grips

    Felt XC trail single aluminum clamp lock-on, wing-style

    Groupset
    Rear Derailleur

    SRAM X1 11-speed

    Front Derailleur

    n/a

    Crank

    Felt Electric MTB Bosch-specific crankset, forged aluminum, 15T cog: S = 170m M/L = 175mm

    Shifters

    SRAM X1 11-speed trigger shifter

    Cassette

    SRAM CS-XG1180 11-speed cassette, 10-42T

    Chain

    SRAM PC-X1 X-Sync w/ Powerlock

    Chain Guide

    n/a

    Brakes

    Front Brake: SRAM Guide R hydraulic w/ 4-piston caliper: 180mm 6-bolt Centerline rotor/Rear Brake: SRAM Guide R hydraulic w/ 4-piston caliper: 180mm 6-bolt Centerline rotor

    Brake Levers

    SRAM Guide R hydraulic

    Wheels
    Rims

    Felt double-wall Fat Tire: 26"x 80mm w/ machined cut-outs

    Spokes

    2.0 / 1.8mm double-butted stainless steel

    Front Hub

    Forged aluminum 150 x 15mm thru axle, 32H: sealed cartridge bearing, 6-bolt disc mount

    Rear Hub

    Forged aluminum 11-speed cassette, 12 x 197mm, 32H rear: sealed cartridge bearing, 6-bolt disc mount

    Tires

    Schwalbe Jumbo Jim Evolution, LiteSkin, folding, 26 x 4.0" w/ presta valve tubes

    Accessories
    Fenders

    n/a
