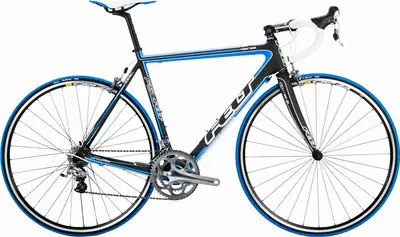

    F5 LTD2011 Felt
    Recommended
    MSRP
    $2,299
    Where to Buy
    —
    $1

    At

    Category
    		Race
    Weight
    		17.4 lbs
    4.5
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano 105 Rim
    		105
    Drivetrain
    		2 × 10
    Brand Site
    Summary
    		The Felt F5 LTD is a carbon frame race bike with upper mid-range components and shimano 105 rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    F5 LTD
    Other Race bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    F5 LTD

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    F5 LTD2011 Felt
    Frame

    Felt Road UHC Performance MMC Carbon Fiber Frame w/ 3KP Weave, InsideOut Internal Molding Process, BB30 Shell, External Cable Routing, Carbon Fiber dropouts & Forged replaceable derailleur hanger, 907g

    BB Standard: BB30, Press Fit

    Fork

    Felt UHC Advanced 100% Carbon Fiber Monocoque Fork w/ 3KP Weave; ControlTaper 1.125” - 1.5” Steerer tube, Crown, Blades, and Dropouts, 370g

    Shock

    n/a

    Bottom Bracket

    FSA BB30 Bearings w/ 24mm Adaptor for Hollowtech II Crankset

    Headset

    FSA NO.42 1.125 - 1.5 Integrated, w/ Aluminum 15mm Conical Spacer, 2 X 10mm Aluminum Headset Spacer, 1 x 5mm Aluminum Headset Spacer, Felt Aluminum Top Cap & 7075 Anodized Aluminum Bolt

    Stem

    3T ARX Pro 2010 Aluminum 3D Forged Ø31.8mm Bar Clamp, Stainless steel bolts, 150g, 48cm=80mm, 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm.

    Handlebar

    3T Ergosum 6061 Butted Aluminum w/ Ergonomic Drop, Ø31.8mm, 48cm-51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm

    Saddle

    fi'zi:k Pave Team Road Saddle Design w/ Ergonomic dip platform, SLIPSTREAM TEAM ISSUE, Embossed Cover & Hollow Cr-Mo rails w/ Rail Scale w/ I.C.S.

    Seatpost

    3T Dorico Pro Forged 6061 Aluminum 2-bolt Design, Ø27.2mm, 280mm

    Type: Rigid

    Pedals

    n/a

    Grips

    Felt Gel Ribbon Cork Tape w/ Felt 3D Logo

    Groupset
    Rear Derailleur

    Shimano 105 SS Short Cage

    Front Derailleur

    Shimano 105 braze-on, double

    Crank

    Shimano 105, 50/34T; 48cm=165mm, 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

    Shifters

    Shimano 105 STI, 20-Speed

    Cassette

    Shimano 105 Cassette, 11-25T

    Chain

    Shimano 105 10-Speed

    Chain Guide

    n/a

    Brakes

    Shimano 105 Super SLR Dual Pivot w/ Cartridge Brake Shoes

    Type: Shimano 105 Rim

    Brake Levers

    Shimano 105 STI

    Wheels
    Rims

    MAVIC CXP-22S Aluminum Rim w/ Machined UB Control Braking Surface & Wear Indicator laced 3-Cross Rear, Radial 0-Cross Front

    Spokes

    Stainless Steel Bladed, Butted 2.0/0.9 x 2.3/1.8mm w/ Aluminum Nipples

    Front Hub

    Felt TTR3 Sealed Bearing CNC Machined 7075 Aluminum 28H w/ Cr-Mo Quick Release Skewer

    Rear Hub

    Felt TTR3 Sealed Bearing CNC Machined 7075 Aluminum 32H w/ Cr-Mo Quick Release Skewer

    Tires

    Vittoria Rubino, 700c x 23c

    Accessories
    Fenders

    n/a
