Bike Comparison
    DD 702017 Felt
    Recommended
    MSRP
    $1,299
    Where to Buy
    —
    $1

    At

    Category
    		Fat
    Weight
    		34.6 lbs
    2.7
    Frame
    		Aluminum
    Fork
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		26″
    Brakes
    		Mechanical Disc
    Motor
    Battery
    Groupset
    		Alivio, SLX
    Drivetrain
    		3 × 9
    Brand Site

    feltbicycles.com

    Summary

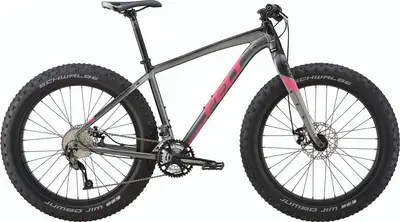

    		The Felt DD 70 is a 26″ aluminum frame rigid fat bike with upper mid-range components and mechanical disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    DD 70
    Other Fat bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    DD 70

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    DD 702017 Felt
    Frame

    Felt Fat, double butted 6061 aluminum, Hydroform, ControlTaper integrated head tube, post disc mount, replaceable derailleur hanger, 100mm threaded bottom bracket, 190mm OLD, Ø30.9mm seatpost, Ø34.9mm clamp adaptor for high direct type front derailleur mount

    BB Standard: BSA, 100mm, Threaded

    Fork

    Felt Fat hydroformed 6061 aluminum, tapered steerer, 150 x 15mm front axle, post-mount, rack mounts

    Shock

    N/A

    Bottom Bracket

    Race Face 100mm

    Headset

    FSA NO.57E/62 semi Integrated internal upper cup, external lower cup w/5.3mm custom cone spacer

    Stem

    Felt MTB 3D-forged threadless 1-1/8"" +/- 7° rise for Ø31.8mm handlebar w/ Cr-Mo bolts: SM - 60mm MD - 70mm LG - 80mm

    Handlebar

    Felt MTB 6061 Flat top, Ø31.8mm, 5mm rise x 9° sweep (760mm)

    Saddle

    Felt MTB performance

    Seatpost

    Felt butted 6061, dual-bolt micro-adjust 15mm offset, Ø30.9 SM (350MM) MD/LG (400MM)

    Pedals

    Low-profile nylon platform

    Grips

    Felt Wing Grip, double-density

    Groupset
    Rear Derailleur

    Shimano Alivio 9-speed, long cage

    Front Derailleur

    Shimano SLX, high direct mount

    Crank

    Race Face Ride SM - 170mm MD/LG - 175mm

    Shifters

    Shimano Deore 3x9

    Cassette

    Sunrace CSM96, 9-speed, 11-36T

    Chain

    Sunrace M94

    Chain Guide

    N/A

    Brakes

    Front: Tektro Novella mechanical disc, 180mm rotor, Rear: Tektro Novella mechanical disc, 160mm rotor

    Brake Levers

    Tektro TS360A

    Wheels
    Rims

    Single-wall, 80mm inside, 26"

    Spokes

    2.0mm stainless

    Front Hub

    Forged Aluminum fat hub, 15x150

    Rear Hub

    Forged Aluminum fat hub, 12x197

    Tires

    Schwalbe Jumbo Jim EVO, folding, 26 x 4.0

    Accessories
    Fenders

    n/a
