Recommended |
---|
MSRP | $2,499 | |
---|---|---|
Where to Buy | — $1 At | |
Category | Fat | |
Weight | 32.5 lbs | |
Aluminum | ||
Fork | RockShox Bluto RL | |
Wheels | Aluminum | |
Wheel Size | 26″ | |
Brakes | Hydraulic Disc | |
Groupset | XT, Race Face | |
Drivetrain | 1 × 11 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

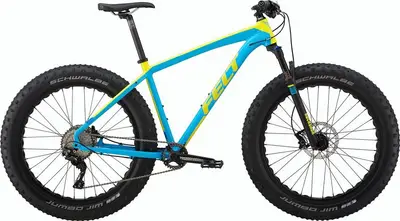

Summary | The Felt DD 10 is a 26″ aluminum frame hardtail fat bike with upper mid-range components. |
Based on frame geometry and build specs.
Frame | Felt Fat, double butted 6061 aluminum, Hydroform, ControlTaper integrated head tube, post disc mount, replaceable derailleur hanger, 100mm threaded bottom bracket, 190mm OLD, Ø30.9mm seatpost, Ø34.9mm clamp adaptor for high direct type front derailleur mount BB Standard: BSA, 100mm, Threaded | |
---|---|---|
Fork | Rock Shox BLUTO RL A2, 100mm | |
Shock | N/A | |
Bottom Bracket | Race Face 100mm | |
Headset | FSA NO. 57 SEMI-INTEGRATED top Zero stack upper and lower | |
Stem | Felt MTB 3D-forged threadless 1-1/8"" +/- 7° rise for Ø31.8mm handlebar w/ Cr-Mo bolts: SM - 60mm MD - 70mm LG - 80mm | |
Handlebar | Felt MTB carbon Flat top, Ø31.8mm, 8mm rise x 9° sweep, (760mm) | |
Saddle | WTB Volt Race - Cr-mo rails | |
Seatpost | Felt carbon shaft w/ forged head, micro-adjust, 15mm offset, Ø30.9 SM (350MM) MD/LG/XL (400MM) | |
Pedals | Low-profile nylon platform | |
Grips | Felt Wing lock-on grip |
Rear Derailleur | Shimano XT 11-speed Shadow Plus, long cage | |
---|---|---|
Front Derailleur | N/A | |
Crank | Race Face Ride SM - 170mm MD/LG - 175mm | |
Shifters | Shimano XT 11-speed | |
Cassette | Shimano XT 11-speed, 11-46T | |
Chain | Shimano HG700 | |
Chain Guide | N/A | |
Brakes | Front: Shimano Deore M615, 180mm rotor, Rear: Shimano Deore M615, 160mm rotor | |
Brake Levers | Shimano Deore |
Rims | Single-wall w/ machined cut-outs, 80mm inside, 26" | |
---|---|---|
Spokes | 2.0mm stainless | |
Front Hub | Forged Aluminum fat hub, 15x150 | |
Rear Hub | Forged Aluminum fat hub, 12x197 | |
Tires | Schwalbe Jumbo Jim EVO, folding, 26 x 4.0 |
Fenders | n/a |
---|
