    AR52015 Felt
    Recommended
    MSRP
    $2,599
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    Weight
    		17.8 lbs
    4.5
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano 105 Rim
    		105
    Drivetrain
    		2 × 11
    Brand Site
    Summary

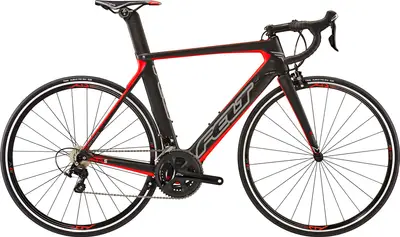

    		The Felt AR5 is a carbon frame aero bike with upper mid-range components and shimano 105 rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    AR5
    Other Aero bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    37 mph

    AR5

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    AR52015 Felt
    Frame

    Felt Aero Road UHC Performance carbon fiber, MMC w/ InsideOut construction, BB30, carbon fiber dropouts, replaceable rear derailleur hanger, internal cable routing (electronic compatible)

    BB Standard: BB30, Press Fit

    Fork

    Felt Aero Road UHC Advanced carbon fiber monocoque construction, AeroTaper 1.125" - 1.25" carbon fiber steer tube w/ integrated crown race, crown, blades & dropouts

    Shock

    n/a

    Bottom Bracket

    FSA BB30 w/ 24mm spindle reducers

    Headset

    FSA No. 38 integrated, 1.125" - 1.25" sealed cartridge bearing w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1x 10mm + 2 x 5mm PC headset spacers, Felt compression device, top cap & aluminum bolt

    Stem

    Felt SuperLite, +/-7° rise, Ø31.8mm 48cm = 80mm 51cm = 90mm 54 - 56cm = 100mm 58cm = 110mm 61cm = 120mm

    Handlebar

    Felt Aero Road VariableShape, 80mm reach, 130mm drop, Ø31.8mm 48cm = 380mm 51cm = 400mm 54 - 56cm = 420mm 58 - 61cm = 440mm

    Saddle

    Prologo Zero II Ti2.0

    Seatpost

    Felt Vibration Reducing Aero Road flip position UHC carbon fiber w/ 3T DiffLock™ Comfort Module internals, 350mm length

    Type: Rigid

    Pedals

    n/a

    Grips

    Felt Gel Tape

    Groupset
    Rear Derailleur

    Shimano 105 11-speed short cage

    Front Derailleur

    Shimano 105 11-speed braze-on

    Crank

    Shimano 105 11-speed 48cm = 165mm 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm

    Shifters

    Shimano 105 11-speed STI

    Cassette

    Shimano 105 11-speed, 12-25T

    Chain

    Shimano 105 11-speed

    Chain Guide

    n/a

    Brakes

    Front Brake: Shimano 105 dual pivot caliper Rear Brake: Shimano 105 direct mount

    Type: Shimano 105 Rim

    Brake Levers

    Shimano 105 11-speed STI

    Wheels
    Rims

    Felt Aero Road R3, 19mm width, 28mm depth (front); Felt Aero Road R3, 21mm width, 35mm depth (Rear)

    Spokes

    2.0 / 1.5 / 2.0mm butted aero stainless steel w/ aluminum nipples

    Front Hub

    Felt Aero R2, sealed cartridge bearing, 24H

    Rear Hub

    Felt Aero R2, sealed cartridge bearing, 28H, 11-speed compatible

    Tires

    Vittoria Rubino Pro Slick, 700 x 23c

    Accessories
    Fenders

    n/a
