    AR52011 Felt
    Recommended
    MSRP
    $2,799
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    Weight
    		17.8 lbs
    4.5
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Tektro Rim
    		105
    Drivetrain
    		2 × 10
    Brand Site
    Summary

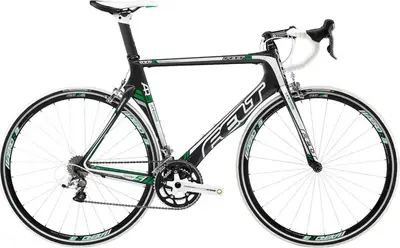

    		The Felt AR5 is a carbon frame aero bike with upper mid-range components and tektro rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    AR5
    Other Aero bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    39 mph

    AR5

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    AR52011 Felt
    Frame

    Felt Aero Road UHC Advanced MMC Carbon Fiber Frame w/ 3KP Weave, Mechanically Optimized Internal Cable Routing, Carbon Fiber dropouts & Forged replaceable derailleur hanger

    Fork

    Felt AR UHC Performance 100% Carbon Fiber Fork; Carbon 1.125 Steerer tube, Crown, Blades, and Dropouts

    Shock

    n/a

    Bottom Bracket

    FSA Mega EXO

    Headset

    FSA Integrated, w/ Aluminum 25mm Conical Spacer, 2 X 10mm Aluminum Headset Spacers, Felt Aluminum Top Cap & 7075 Anodized Aluminum Bolt

    Stem

    Felt SL 6061 Aluminum 3D Forged +/-7° Rise, Ø31.8mm Bar Clamp, custom Cr-Mo bolts, 128g, 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm.

    Handlebar

    Felt VS Aero 2014 Triple Butted Aluminum w/ Aerodynamic Wing Top Section, w/ Ergonomic Drop, Ø31.8mm, 51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm

    Saddle

    Felt SL Road Saddle w/ Carbon Fiber Injection Molded Base, Superlight Multi-Density Foam, Embossed Cover & Hollow Cr-Mo rails

    Seatpost

    Felt Aero UHC Advanced Carbon Fiber Standard Offset Bladed Monocoque Design, Length = 300mm

    Type: Rigid

    Pedals

    n/a

    Grips

    Felt Gel Ribbon Cork Tape w/ Felt 3D Logo

    Groupset
    Rear Derailleur

    Shimano 105 SS Short Cage

    Front Derailleur

    Shimano 105 braze-on, double

    Crank

    FSA Gossamer Pro Compact 2 piece w/ Integrated MegaExo BB, A6061-T6 cold Forged solid Crank Arms w/ AL7075 T6 Aluminum N10 5mm CNC Super Chainrings, Black AL7075 T6 Aluminum Torx T-30 Chainring Bolts, 110mm BCD, 808 grams (excluding BB) 50/34T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

    Shifters

    Shimano 105 STI, 20-Speed

    Cassette

    Shimano 105 Cassette, 11-25T

    Chain

    Shimano 105 10-Speed

    Chain Guide

    n/a

    Brakes

    Tektro Quartz R741 Cold Forged Shimano Super SLR Compatible Dual Pivot w/ Cartridge Brake Shoes

    Type: Tektro Rim

    Brake Levers

    Shimano 105 STI

    Wheels
    Rims

    Felt AeroR3 700c 30mm Deep Aluminum w/ CNC Machined Braking Surface, 24H Front/28H Rear

    Spokes

    Stainless Steel Bladed, Butted 2.0/0.9 x 2.3/1.8mm w/ Aluminum Nipples

    Front Hub

    Felt TTR3 Sealed Bearing CNC Machined 7075 Aluminum 24H w/ Cr-Mo Quick Release Skewer

    Rear Hub

    Felt TTR3 Sealed Bearing CNC Machined 7075 Aluminum 28H w/ Cr-Mo Quick Release Skewer

    Tires

    Vittoria Zaffiro Pro, 700c x 23c, 60tpi

    Accessories
    Fenders

    n/a
