Bike Comparison
    AR52010 Felt
    Recommended
    MSRP
    $2,999
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    3.9
    Frame
    		Carbon
    Fork
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Brakes
    		Rim
    Motor
    Battery
    Groupset
    		105, FSA
    Drivetrain
    		2 × 10
    Brand Site

    2010.feltracing.com

    Summary

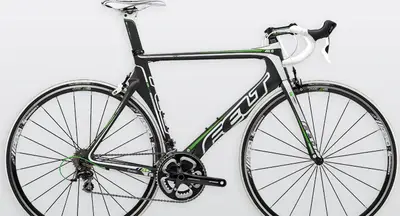

    		The Felt AR5 is a carbon frame aero bike with upper mid-range components and rim brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    smoothrugged
    AR5
    Other Aero bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    41 mph

    AR5

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    AR52010 Felt
    Frame

    Felt Aero Road UHM Ultra High Modulus Modular Monocoque carbon fiber frame with 3KP finish; internal cable routing, carbon fiber dropouts & replaceable derailleur hanger

    Fork

    Felt 1.3A bladed aero HM High Modulus fork with aero carbon fiber blades, carbon fiber crown, carbon fiber steerer tube & carbon fiber dropouts: 450 grams

    Shock

    n/a

    Bottom Bracket

    FSA Mega EXO

    Headset

    FSA 1 1/8 Integrated w/ 20mm Cone & 2 X 7.5mm Spacer Stack

    Stem

    Felt 1.2 6061 Aluminum 3D Forged Ø31.8mm w/ +/-7° Rise, 51cm=80mm, 54cm=90mm, 56cm=100mm, 58cm=110mm, 61cm=110mm

    Handlebar

    Felt 1.3 2014 Triple Butted Aluminum w/ Aerodynamic Wing Top Section, w/ Ergonomic Drop, Ø31.8mm, 51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm

    Saddle

    Felt 1.2 Road Saddle w/ Carbon Injected Base, Embossed Cover & Hollow Cr-Mo Rails

    Seatpost

    Felt 1.1a UHM Carbon Fiber Standard Offset Bladed Monocoque Design x 300mm

    Pedals

    n/a

    Grips

    Felt Gel Ribbon Cork Tape w/ Felt 3D Logo

    Groupset
    Rear Derailleur

    Shimano 105 SS Short Cage

    Front Derailleur

    Shimano 105 braze-on, double

    Crank

    FSA Gossamer Compact Mega EXO, 2-PC, Cold Forged Aluminum w/ CNC 7075/T6 Aluminum Chainrings, 52/36T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

    Shifters

    Shimano 105 STI, 20-Speed

    Cassette

    Shimano 10-Speed Cassette, 11-25T

    Chain

    Shimano 10-Speed

    Chain Guide

    n/a

    Brakes

    SuperLight Dual Pivot w/ Cartridge Brake Shoes, Stainless Hardware & Teflon Bushings

    Brake Levers

    Shimano 105 STI

    Wheels
    Rims

    Felt AeroR4 700c 27mm Deep Aluminum w/ CNC Machined Braking Surface, 20H Front/24H Rear

    Spokes

    Alpina Bladed butted 1.8/0.9 x 2.3/1.8mm w/ Aluminum Nipples

    Front Hub

    Felt AeroR4 Sealed Bearing CNC Machined 7075 Aluminum 20H w/ Cr-Mo Quick Release Skewer

    Rear Hub

    Felt AeroR4 Sealed Bearing CNC Machined 7075 Aluminum 24H w/ Cr-Mo Quick Release Skewer

    Tires

    Vittoria Rubino, 700c x 23c

    Accessories
    Fenders

    n/a
