Bike Comparison
    AR12013 Felt
    Recommended
    MSRP
    		$12,399
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    Weight
    		15.0 lbs
    7.9
    Frame
    		Carbon
    Fork
    		Carbon
    Wheels
    		Carbon
    Wheel Size
    		700c
    Brakes
    		Rim
    Motor
    Battery
    Groupset
    		Dura-Ace Di2
    Drivetrain
    		2 × 11 Electronic
    Brand Site

    2013.feltracing.com

    Summary

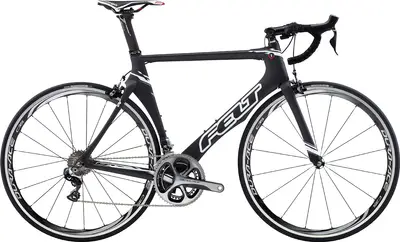

    		The Felt AR1 is a carbon frame aero bike with ultra high-end components and rim brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    AR1
    Other Aero bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    42 mph

    AR1

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    AR12013 Felt
    Frame

    Felt Aero Road UHC Ultimate + Nano MMC Carbon Fiber frame w/ 1.5KP weave, InsideOut internal molding process, machined threaded aluminum BB shell, Carbon Fiber dropouts & 7075 CNC machined aluminum replaceable derailleur hanger

    BB Standard: BSA, 68mm, Threaded

    Fork

    Felt Aero Road UHC Ultimate + Nano monocoque fork, 100% carbon fiber 1.125"" steerer tube, crown, blades, & dropouts

    Shock

    n/a

    Bottom Bracket

    Shimano Hollowtech-II

    Headset

    FSA Orbit IS Carbon integrated, w/ carbon fiber 15mm conical spacer, 2 X 10mm carbon fiber headset spacers, 1 x 5mm aluminum headset spacer, Felt carbon fiber top cap & 7075 anodized aluminum bolt

    Stem

    Devox 7050 aluminum 3D forged +/-7° rise, Ø31.8mm bar clamp, titanium bolts, 118g; 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm

    Handlebar

    Devox VS UHC Ultimate + Nano DMC carbon fiber bar w/ 1.5KP weave w/ Felt Variable Shape ergonomic drop, 172g, Ø31.8mm, 51cm=400mm, 54cm=420mm, 56cm-61cm=440mm

    Saddle

    Prologo Zero II Nack

    Seatpost

    Felt Aero UHC Advanced carbon fiber standard offset bladed monocoque design, length = 300mm

    Pedals

    n/a

    Grips

    Devox gel velvet tape w/ Devox 3D logo

    Groupset
    Rear Derailleur

    Shimano Dura-Ace Di2

    Front Derailleur

    Shimano Dura-Ace Di2 braze-on

    Crank

    Shimano Dura-Ace, 53/39T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

    Shifters

    Shimano Dura-Ace Di2 STI

    Cassette

    Shimano 11-25T

    Chain

    Shimano 11 speed

    Chain Guide

    n/a

    Brakes

    Shimano Dura-Ace Super SLR dual pivot w/ cartridge brake pads

    Brake Levers

    Shimano Dura-Ace Di2 STI

    Wheels
    Rims

    Shimano WH-7900-C35-CL 35mm deep carbon fiber clincher, 16H front, 20H rear

    Spokes

    Shimano Dura-Ace 16H x 275mm front, 10 x 294mm drive rear& 10 x 295mm non-drive rear bladed aero stainless steel w/ aluminum nipples

    Front Hub

    Shimano Dura-Ace forged aluminum loose ball 16H w/ Shimano Dura-Ace quick release

    Rear Hub

    Shimano Dura-Ace forged aluminum loose ball w/ 10 speed HG titanium freehub body w/ Shimano Dura-Ace quick release

    Tires

    Vittoria Diamante Pro Radiale, 700c x 22c

    Accessories
    Fenders

    n/a
