    AR12011 Felt
    Recommended
    MSRP
    $9,699
    Where to Buy
    —
    $1

    At

    Category
    		Aero
    Weight
    		15.4 lbs
    8.3
    Frame
    		Carbon
    		Carbon
    Wheels
    		Carbon
    Wheel Size
    		700c
    		Shimano Ultegra Rim
    		Dura-Ace Di2
    Drivetrain
    		2 × 10 Electronic
    Brand Site
    Summary

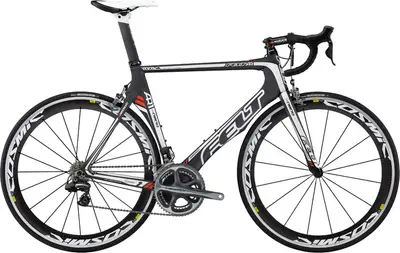

    		The Felt AR1 is a carbon frame aero bike with ultra high-end components and shimano ultegra rim brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    AR1
    Other Aero bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    42 mph

    AR1

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    AR12011 Felt
    Frame

    Felt Aero Road UHC Ultimate + Nano MMC Carbon Fiber Frame w/ 1.5KP Weave, InsideOut Internal Molding Process, Di2 Optimized Internal Cable Routing, Carbon Fiber dropouts & 7075 CNC machined replaceable derailleur hanger

    Fork

    Felt AR UHC Ultimate + Nano 100% Carbon Fiber Monocoque Fork; Carbon 1.125 Steerer tube, Crown, Blades, and Dropouts

    Shock

    n/a

    Bottom Bracket

    Shimano Hollowtech-II

    Headset

    FSA Integrated, w/ Aluminum 25mm Conical Spacer, 2 X 10mm Aluminum Headset Spacers, Felt Carbon Fiber Top Cap & 7075 Anodized Aluminum Bolt

    Stem

    DEVOX 7050 Aluminum 3D Forged +/-7° Rise, Ø31.8mm Bar Clamp, Titanium bolts, 94g, 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm.

    Handlebar

    Felt VS UHC Advanced MMC Carbon Fiber Bar w/ 3KP Weave w/ Felt Variable Shape Ergonomic Drop, 198g, Ø31.8mm, 51cm=400mm, 54cm=420mm, 56cm-61cm=440mm

    Saddle

    Felt SL Road Saddle w/ Carbon Fiber Injection Molded Base, Superlight Multi-Density Foam, Embossed Cover & Hollow CrN-Ti rails

    Seatpost

    Felt Aero UHC Advanced Carbon Fiber Standard Offset Bladed Monocoque Design, Length = 300mm

    Type: Rigid

    Pedals

    n/a

    Grips

    Felt Gel Ribbon Cork Tape w/ Felt 3D Logo

    Groupset
    Rear Derailleur

    Shimano Dura-Ace Di2

    Front Derailleur

    Shimano Dura-Ace Di2 braze on

    Crank

    Shimano Dura-Ace, 53/39T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

    Shifters

    Shimano Dura-Ace 7970 Di2 STI, 20 speed

    Cassette

    Shimano Cassette, 11-25T

    Chain

    Shimano 10-Speed

    Chain Guide

    n/a

    Brakes

    Shimano Ultegra Super SLR Dual Pivot w/ Cartridge Brake Shoes

    Type: Shimano Ultegra Rim

    Brake Levers

    Shimano Dura-Ace 7970 Di2 STI

    Wheels
    Rims

    MAVIC Cosmic Carbone SL 52mm deep Carbon fiber rim, elliptical sidewalls w/ Maxtal Clincher braking surface, 16H Front, 20H Rear

    Spokes

    MAVIC Cosmic Carbone SL Stainless Steel Straight Pull, Laced radial Front; Laced 2x drive, radial non-drive Rear; Brass Internal Spoke Nipples

    Front Hub

    MAVIC QRM+ Aluminum 16H Front hub w/ BR301 quick release

    Rear Hub

    MAVIC QRM+ Aluminum 20H Rear hub w/ FTS-L Shimano 10 speed compatible freehub body and BR301 quick release

    Tires

    Vittoria Diamante Pro-Light, 700c x 23c

    Accessories
    Fenders

    n/a
