    Galaxy 5002020 EVELO
    Recommended
    MSRP
    $3,999
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		59.3 lbs
    7.8
    Frame
    		Aluminum
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		24″
    		Tektro Hydraulic Disc
    		500W 90Nm mid-drive
    		Panasonic 468Wh
    		Gates CDX
    Drivetrain
    		Belt Drive, Internally Geared Hub
    Brand Site
    Summary

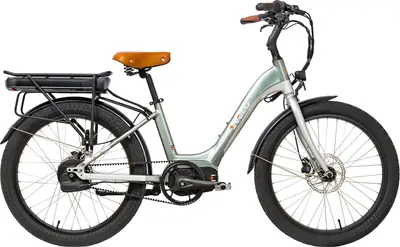

    		The EVELO Galaxy 500 is a 24″ aluminum frame commuter e-bike with high-end components and tektro hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Galaxy 5002020 EVELO
    Frame

    6061 High-Strength Aluminum Alloy

    Fork

    Custom Rigid 6061 Aluminum Alloy, 52mm Offset, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer

    Headset

    Integrated, Sealed Cartridge, Straight 1-1/8" (44mm Outer Diameter)

    Stem

    Satori Stargazer Aluminum Alloy, 45° Angle, 15mm Base, 110mm Length, Three 10mm Spacers, One 18mm Tapered Bottom Spacer, 31.8mm Handlebar Clamp Diameter

    Handlebar

    Promax HBM-301, Swept Back, Aluminum Alloy, 80mm Rise, 20° Back Sweep, 640mm Width

    Saddle

    Selle Royal RoyalGel Springer Comfort Saddle (Optional Upgrade Program)

    Seatpost

    Aluminum Alloy, Single-Bolt Forged Head

    Type: Rigid

    Pedals

    Wellgo C235 Aluminum Alloy Platform, Rubberized Grip

    Grips

    Velo, Rubber, Ergonomic, Non-Locking

    Groupset
    Crank

    Forged Aluminum Alloy Crank Arms, 170mm Length, 55 Tooth Gates Carbon Drive CDX Belt Ring Chainring

    Shifters

    Enviolo NuVinci Optimized Half-Grip Twist Shifter on Right Bar (Electronic Shifting, Choose Adaptive Cadence or Fixed Cadence with Silver Button) (Optional NuVinci Grip Twist on Right Bar)

    Cassette

    1 Speed 1x∞ Enviolo Automatic Continuously Variable Transmission 380° Gear Range Equivalent to 11-42T Cassette (Fully Automatic Electronic Shifting System), 22 Tooth Rear Cog

    Brakes

    Tektro Auriga E-Comp Hydraulic Disc with 180mm Front Rotor and 160mm Rear Rotor, Dual-Piston Calipers, Tektro Auriga E-Comp 3-Finger Levers with Motor Inhibitors and Adjustable Reach

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Aluminum Alloy, Double Wall, 45mm Outer Width, 36 Hole, Black

    Spokes

    Stainless Steel, 13 Gauge, Silver with Adjustable Nipples

    Tires

    CST Cyclops, 24" x 2.4" (61-507)

    Electric Components
    Motor

    Weight: 9 lbs (4.08 kg), Brand: Dapu MD-250 with Custom Controller for Higher Output, Type: Mid-Mounted Geared Motor, Nominal Output: 500 watts, Peak Output: 600 watts, Torque: 90 Newton meters

    Battery

    Weight: 7.4 lbs (3.35 kg), Brand: Panasonic or Samsung (A Rated Cells), Greeenway (Battery Assembler), 18650 Cells (Optional Panasonic), Voltage: 36 volts, Amp Hours: 13 ah, Watt Hours: 468 wh, Chemistry: Lithium-ion

    Display

    Dapu, Fixed, Adjustable Angle, 3.25" Color Backlit LCD
