 | Recommended |
|---|
MSRP | $1,699 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | General Urban, E-Bike | |
Weight | 55.6 lbs | |
| Aluminum | ||
Fork | Steel | |
Wheels | Aluminum | |
Wheel Size | 26″ | |
Brakes | Hydraulic Disc | |
| 500W 50Nm hub-drive | ||
| 576Wh | ||
Groupset | Shimano | |
Drivetrain | ||
Brand Site | ||

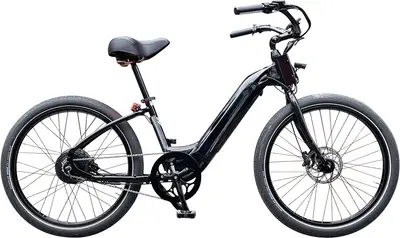

Summary | The Electric Bike Company Model E is a 26″ aluminum frame general urban e-bike with modest components and hydraulic disc brakes. | |
Frame | 6061 Aluminum Alloy | |
|---|---|---|
Fork | Rigid Steel, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer | |
Headset | Integrated Cartridge Bearing, Threaded Quill, Straight 1-1/8" Diameter | |
Stem | Aluminum Alloy Quill, Adjustable Angle, 0° to 60°, Adjustable Height, 100mm Length, 25.4mm Clamp Diameter | |
Handlebar | Steel, Oversized Cruiser Style, 710mm Width, Black or Silver Depending on Frame Colors | |
Saddle | Grand Star, Oversized Comfort with Rubber Bumpers | |
Seatpost | Aluminum Alloy with Tapered Top, Separate Single Bolt Saddle Clamp | |
Pedals | Wellgo Aluminum Alloy Platform with Rubber Tread | |
Grips | Padded Stitched, Inner and Outer Lock Rings, Brown or Black Depending on Frame Color |
Crank | Aluminum Alloy, 170mm Crank Arms, Square Tapered Spindle, 58 Tooth Aluminum Alloy Chainring with Aluminum Alloy Guard (Aluminum Alloy Guard Included for 7-Speed Upgrade) | |
|---|---|---|
Shifters | Optional Shimano Triggers on Right (One-Way High, Three-Shift Low) | |
Cassette | 1 | |
Brakes | Bengal Ares 3 Hydraulic Disc with 180mm Rotors, Dual Piston Calipers, Bango Three Finger Levers with Motor Inhibitors and Adjustable Reach |
Rims | JetSet, Aluminum Alloy, Double Wall, 36 Hole, 40mm Outer Width, Black or Silver Depending on Frame Color | |
|---|---|---|
Spokes | Stainless Steel, 13 Gauge, Black or Silver with Brass Nipples | |
Tires | Schwalbe Fat Frank E-Cruiser Tires, 26" x 2.35" (60-559), Or 24" x 2.25" |
Motor | Weight: 8 lbs (3.62 kg), Brand: MXUS XF15R (48 Volt), Type: Rear-Mounted Geared Hub, Learn more about Ebike motors, Nominal Output: 500 watts, Peak Output: 1000 watts, Torque: 50 Newton meters | |
|---|---|---|
Battery | Weight: 7 lbs (3.17 kg), Brand: Samsung 29E or 35E 18650 Cells, Voltage: 48 volts, Amp Hours: 12 ah, Watt Hours: 576 wh, Chemistry: Lithium-ion |
