MSRP | $4,100 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter, E-Bike | |
Frame | Aluminum | |
| Aluminum | ||
Wheels | Aluminum | |
Wheel Size | 650b | |
| Tektro Hydraulic Disc | ||
| Bosch 600W 85Nm mid-drive | ||
| Bosch 500Wh | ||
| Deore | ||
Drivetrain | 1 × 10 | |
Brand Site | ||

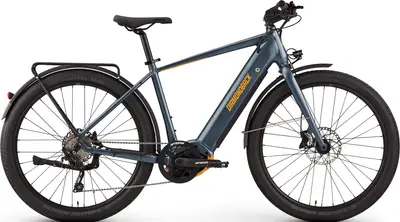

Summary | The Diamondback Union 2 is a 650b aluminum frame commuter e-bike with upper mid-range components and tektro hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Formed 6061 T6 Oversize Aluminum Alloy Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery | |
|---|---|---|
Fork | Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle | |
Shock | * | |
Bottom Bracket | * | |
Headset | Integrated, Sealed Bearing | |
Stem | Aluminum Alloy 3d Forged | |
Handlebar | Aluminum Alloy | |
Saddle | Custom Ergo Performance | |
Seatpost | Aluminum Alloy Forged Head, 350mm Type: Rigid | |
Pedals | Shoe Friendly Urban Design, Resin Body | |
Grips | Ergo Comfort Control |
Rear Derailleur | Shimano Deore M610, SGS | |
|---|---|---|
Front Derailleur | N/A | |
Crank | FSA Forged Aluminum for Bosch System | |
Shifters | Shimano Deore SL-M6000, 10 Speed | |
Cassette | Shimano, 11-32 tooth, 10 Speed | |
Chain | KMC x10e EPT, Ebike Specific | |
Brakes | Tektro HD-M735, 4 Piston Front 180mm Rotor, 2 Piston Rear 160mm Rotor Type: Tektro Hydraulic Disc | |
Brake Levers | TEKTRO HD-M735, 2 Finger Lever |
Rims | Aluminum 27.5", Black Anodized, 25mm ID, Disc Specific, 32 Hole | |
|---|---|---|
Spokes | Black w/Silver Nipples | |
Front Hub | Formula, Sealed Bearing, Thru Axle | |
Rear Hub | Formula, Sealed Bearing, Thru Axle | |
Tires | 27.5" x 2.4" Schwalbe Super Moto |
Motor | Bosch Performance Line Speed, 85Nm Torque | |
|---|---|---|
Battery | Bosch PowerTube 500 | |
Display | Bosch Kiox | |
Charger | Bosch 4A |
