Bike Comparison
    Sync'r Carbon2019 Diamondback
    Recommended
    MSRP
    $2,999
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    6.8
    Frame
    		Carbon
    Fork
    		Fox Performance Float 34
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		GX Eagle, Truvativ Descendant
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		140mm
    Brand Site

    diamondback.com

    Summary

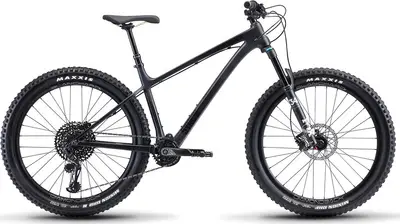

    		The Diamondback Sync'r Carbon is a 27.5″ carbon frame hardtail trail bike with high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Sync'r Carbon
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    Sync'r Carbon

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Sync'r Carbon2019 Diamondback
    Frame

    New Sync'r Monocoque Carbon, Asymetrical Chainstays, Internal Cable Routing, Tapered Headtube, Euro Standard Threaded BB, ISCG-05 Tabs, Internal Dropper Post Ready, 148x12mm Boost Hub Spacing, 27.5x2.8",Post Mount Disc, w/ Replacable

    BB Standard: BSA, 73mm, Threaded

    Fork

    Fox 34 Performance Float, 140mm of Travel, Grip 3 POS, 15mm Thru Axle

    Shock

    N/A

    Bottom Bracket

    Truvativ Powerspline

    Headset

    FSA No-57E Taper 1.5 /1-1/8" Standard Cups, Sealed Cartridge

    Stem

    Diamondback "Shortie", 40mm Reach, 35mm Bar Bore

    Handlebar

    Race Face Æffect 35, 20mm Rise, 780mm Wide, 35mm Bar Bore

    Saddle

    DB Sync'r Saddle

    Seatpost

    X-Fusion Manic Dropper Post, 125mm (S,M) / 150mm (L,XL) of travel

    Pedals

    DB4L Alloy Platform, Sealed Cartridge Bearings w/ Replaceable Pins

    Grips

    New DB "Flanged" Lock-on, 135mm Silcone

    Groupset
    Rear Derailleur

    SRAM GX Eagle, 12 Speed

    Crank

    Truvativ Descendant 6K, 32T Eagle Chainring

    Shifters

    SRAM GX Eagle 12 Speed X-Actuation Trigger

    Cassette

    SRAM XG1275 Eagle, 12 Speed, 10-50T

    Chain

    SRAM GX Eagle, 12 Speed

    Chain Guide

    MRP

    Brakes

    Shimano MT501 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors

    Brake Levers

    Shimano MT501 Hydraulic

    Wheels
    Rims

    Diamondback Blanchard 32R, Tubeless Ready, 32h

    Spokes

    14g Stainless Steel

    Front Hub

    32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount

    Rear Hub

    32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, for SRAM XD Cassette, w/ CNC Disc Mount

    Tires

    Maxxis Minion DHF 27.5x2.8" EXO, TLR, Folding / Maxxis Minion DHR 27.5x2.8" EXO, TLR, Folding
