Bike Comparison
    Rely 22020 Diamondback
    Recommended
    MSRP
    $1,500
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    4.8
    Frame
    		Aluminum
    Fork
    		RockShox Judy Gold RL
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		NX, Race Face
    Drivetrain
    		1 × 11
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    diamondback.com

    Summary

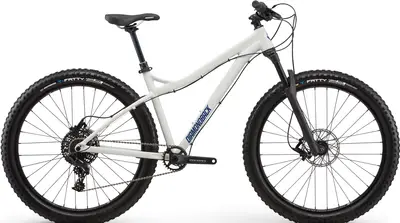

    		The Diamondback Rely 2 is a 27.5″ aluminum frame hardtail women’s trail bike with upper mid-range components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Rely 2
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    21 mph

    Rely 2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Rely 22020 Diamondback
    Frame

    Rely Women's 27.5" Plus 6061-T6 Weapons Grade Aluminum w/ Double Butted Formed Top Tube, Down Tube, Seatstays, Tapered Head Tube, ISCG-05 Tabs, 148x12mm Boost Spec Dropouts, w/ Replaceable Hanger

    Fork

    Rockshox Judy Gold RL, 120mm Travel, Solo Air Spring, External Rebound Adjust w/ Turnkey Lockout, Magnesium Lowers, Alloy 1.5" Tapered Steerer Tube, Boost 110x15mm Thru-axle

    Bottom Bracket

    Raceface Outboard Bearing

    Headset

    FSA NO.57, Sealed Cartridge for Tapered Headtube

    Stem

    DB35 Alloy, 60mm, 35mm Bar Bore

    Handlebar

    DB35 Alloy, 760mm Wide, 15mm Rise, 35mm Bar Bore

    Saddle

    DB Women's Performance MTB Saddle

    Seatpost

    JD 7075 Alloy Internal Dropper, w/ 1x Lever, 30.9mm

    Pedals

    DB4L Alloy Platform w/ Replaceable Pins

    Grips

    New DB "Flanged" Lock-on, 135mm Silcone

    Groupset
    Rear Derailleur

    SRAM NX X-Horizon, 11 Speed

    Crank

    Raceface Æffect Cinch w/ Steel 28T "Narrow Wide"

    Shifters

    SRAM NX 11 Speed X-Actuation Trigger

    Cassette

    SRAM PG1130, 11 Speed, 11-42T

    Chain

    KMC X11EL, 11 Speed

    Brakes

    SRAM Level T Hydraulic Disc, w/ 180mm Front / Rear Centerline Rotors

    Brake Levers

    SRAM Level Hydraulic Levers w/ Tooled Reach Adjust

    Wheels
    Rims

    Diamondback Alex MD35, Tubeless ready, 32h

    Spokes

    14g Stainless Steel

    Front Hub

    32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount

    Rear Hub

    32h Alloy, Boost 148x12mm Thru-axle, 2 Sealed Cartridge Bearing, for SRAM XD w/ CNC Disc Mount

    Tires

    Vee Rubber T-Fatty 27.5x2.8
