Bike Comparison
    Release 5C Carbon2019 Diamondback
    Recommended
    MSRP
    $4,799
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    6.9
    Frame
    		Carbon
    Fork
    		Fox Performance Elite Float 36
    Shock
    		Fox Float DPX2 Performance Elite
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		GX Eagle, Truvativ Descendant
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		150mm
    Rear Travel
    		130mm
    Brand Site

    diamondback.com

    Summary

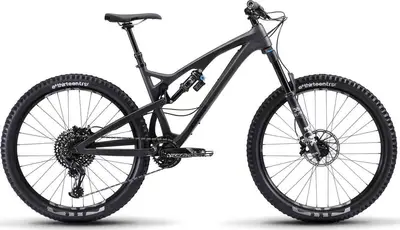

    		The Diamondback Release 5C Carbon is a 27.5″ carbon frame full suspension trail bike with high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Release 5C Carbon
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    26 mph

    Release 5C Carbon

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Release 5C Carbon2019 Diamondback
    Frame

    Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs

    BB Standard: BSA, 73mm, Threaded

    Fork

    Fox 36 Performance Elite Float, 27.5", 150mm Travel, Fit4, 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle

    Shock

    Fox Performance Elite Float DPX2, 3 Position Lever w/Open Mode Adjust, LV EVOL, 200x57mm, 22.2mm Eyelet Width

    Bottom Bracket

    SRAM DUB Outboard Bearing

    Headset

    FSA No. 57 Sealed Cartridge

    Stem

    Raceface Æffect R 35, 40mm Reach, 35mm Bar Bore

    Handlebar

    Raceface Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore

    Saddle

    WTB Volt Pro

    Seatpost

    KS LEV Integra Internal Dropper, w/SouthPaw Remote, 31.6mm, XS/SM = 125mm, MD/LG/XL = 150mm

    Pedals

    DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins

    Grips

    Ergon GE10 Evo Lock-On

    Groupset
    Rear Derailleur

    SRAM GXEagle, 12 Speed

    Front Derailleur

    MRP XCG V2 Alloy Bash Guard, 32T, ISCG-05

    Crank

    SRAM Descendant 7K Eagle w/32T Direct Mount

    Shifters

    SRAM GXEagle, 12 Speed

    Cassette

    SRAM XG-1275 Eagle, 12 Speed, 10-50T

    Chain

    SRAM GX Eagle, 12 Speed

    Brakes

    SRAM Guide RS Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors

    Brake Levers

    SRAM Guide RS

    Wheels
    Rims

    e*thirteen TRS Plus 30mm Aluminum Rim TRS Plus Aluminum 32h

    Spokes

    2.0/1.8/2.0 Butted Stainless Steel

    Tires

    e*thirteen TRS Race SS 2.35 Tire Tubeless Ready Single Ply Apex Aramid Reinforced, Slow Rebound, Dual Compound
