MSRP | $5,850 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Frame | Carbon | |
| Fox Factory Float 36 | ||
| Fox Float DPS Factory | ||
Wheels | Aluminum | |
Wheel Size | 27.5″ | |
| SRAM G2 RS Hydraulic Disc | ||
| GX Eagle, Truvativ Descendant | ||
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 130mm | |
Brand Site | ||

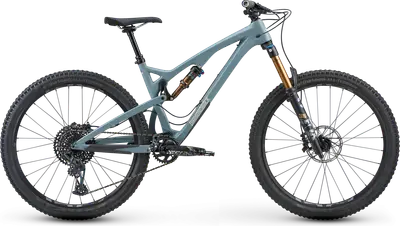

Summary | The Diamondback Release 5C is a 27.5″ carbon frame full suspension trail bike with high-end components. | |
Ask 99 Spokes
Based on frame geometry and build specs.
Frame | Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Fox 36 Factory Float, 27.5", 150mm Travel, GRIP2, 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle Travel: 150mm Spring Type: Air | |
Shock | Fox Factory Float DPS, 3 Position Lever w/Open Mode Adjust, EVOL LV, 200x57mm, 22.2mm Eyelet Width Travel: 130mm | |
Bottom Bracket | SRAM DUB Outboard Bearing | |
Headset | FSA No. 57 Sealed Cartridge | |
Stem | Factor Components F355, 35mm Reach, 35mm Bar Bore | |
Handlebar | Race Face Turbine R, 780mm Wide, 20mm Rise, 35mm Bar Bore | |
Saddle | WTB Volt Chromoly SL | |
Seatpost | KS Rage-I, Internal Dropper, 31.6 w/Westy 1x Remote Type: Dropper | |
Pedals | DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins | |
Grips | Ergon GE10 Evo Lock-On |
Rear Derailleur | SRAM GX Eagle, 12 Speed | |
|---|---|---|
Front Derailleur | MRP XCG V2 Aluminum Bash Guard, 32T, ISCG-05 | |
Crank | SRAM Descendant 7K Eagle w/32T Direct Mount | |
Shifters | SRAM GX Eagle, 12 Speed | |
Cassette | SRAM XG-1275 Eagle, 12 Speed, 10-50T | |
Chain | SRAM GX Eagle, 12 Speed | |
Brakes | SRAM G2 RS, 4 Piston, Hydraulic Disc, w/180mm Front / 180mm Rear Centerline Rotors Type: SRAM G2 RS Hydraulic Disc | |
Brake Levers | SRAM G2 RS |
Rims | E*Thirteen LG1 EN Plus, w/TRS Plus Aluminum 27.5", 30mm internal width, 28h, Taped for Tubeless | |
|---|---|---|
Spokes | 2.0/1.8/2.0 Butted Stainless Steel | |
Front Hub | Novatec XD641, 28h Aluminum110x15mm Boost Thru-axle, Sealed Cartridge Bearing | |
Rear Hub | Novatec XD642, 28h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, w/CNC Disc Mount, XD Cassette Body | |
Tires | E*Thirteen TRS Race All-Terrain, Tubeless Ready, 27.5x2.4" |
