 | Recommended |
|---|
MSRP | $3,599 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
| Carbon | ||
Fork | Fox Performance Float 34 | |
Shock | Fox Float DPS Performance | |
Wheels | Aluminum | |
| 27.5″ | ||
Brakes | Hydraulic Disc | |
Groupset | NX Eagle, Truvativ Descendant | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 150mm | |
Rear Travel | 130mm | |
Brand Site | ||

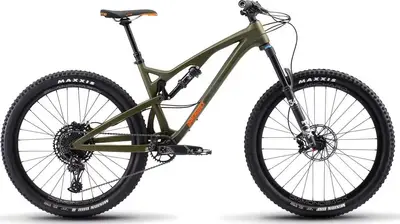

Summary | The Diamondback Release 4C Carbon is a 27.5″ carbon frame full suspension trail bike with high-end components. | |
Based on frame geometry and build specs.
Frame | Carbon Release 27.5, Monocoque Carbon Front and Rear Triangle, 130mm Travel, Level Link Suspension Platform, Euro Standard Threaded BB, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube, Post Mount Disc Tabs BB Standard: BSA, 73mm, Threaded | |
|---|---|---|
Fork | Fox 34 Performance Float, 27.5", 150mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle | |
Shock | Fox Float DPS EVOL LV, Performance, 3 Position Lever, 200x57mm, 22.2mm Eyelet Width | |
Bottom Bracket | SRAM DUB Outboard Bearing | |
Headset | FSA No. 57 Sealed Cartridge | |
Stem | DB35 Alloy, 40mm Reach, 35mm Bar Bore | |
Handlebar | DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore | |
Saddle | WTB Volt Race | |
Seatpost | KS LEV SI Internal Dropper, w/SouthPaw Remote, 31.6mm, XS/SM = 125mm, MD/LG/XL = 150mm | |
Pedals | DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins | |
Grips | Ergon GE10 Evo Lock-On |
Rear Derailleur | SRAM NX Eagle, 12 Speed | |
|---|---|---|
Crank | SRAM Descendant 6K Eagle w/32T Direct Mount | |
Shifters | SRAM NX Eagle, 12 Speed | |
Cassette | SRAM PG-1230 Eagle, 12 Speed, 11-50T | |
Chain | SRAM NX Eagle, 12 Speed | |
Brakes | SRAM Guide R, w/180mm Front /180mm Rear Centerline Rotors | |
Brake Levers | SRAM Guide R |
Rims | Diamondback Blanchard 28R, Tubeless Ready, 32h | |
|---|---|---|
Spokes | 14g Stainless Steel | |
Front Hub | 32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing | |
Rear Hub | 32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette | |
Tires | Maxxis Minion DHF 27.5x2.3" EXO, TLR, Folding / Maxxis Minion DHR 27.5x2.3" EXO, TLR, Folding |
