    Release 29 32023 Diamondback
    Recommended
    MSRP
    $4,550
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    5.8
    Frame
    		Aluminum
    		Fox Performance Float 34
    		Fox Float DPS Performance Elite
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Ultegra Hydraulic Disc
    		GX Eagle, Truvativ Stylo
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		140mm
    Rear Travel
    		130mm
    Brand Site

    diamondback.com

    Summary

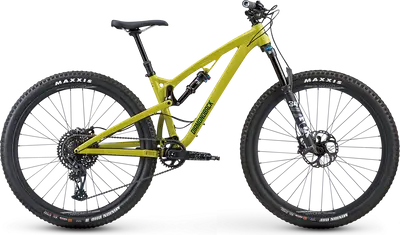

    		The Diamondback Release 29 3 is a 29″ aluminum frame full suspension trail bike with high-end components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Release 29 3
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Release 29 3

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Release 29 32023 Diamondback
    Frame

    Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube

    Fork

    Fox 34 Performance Float, 29", 140mm Travel, Grip 3 Position Damper, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle

    Travel: 140mm

    Spring Type: Air

    Shock

    Fox Performance Elite Float DPS, 3 Position Lever, LV EVOL, 200x57mm, 22.2mm Eyelet Width

    Travel: 130mm

    Bottom Bracket

    SRAM DUB

    Headset

    FSA No. 57 Sealed Cartridge

    Stem

    DB35 Aluminum 35mm Reach, 35mm Bar Bore

    Handlebar

    DB35 Aluminum 780mm Wide, 15mm Rise, 35mm Bar Bore

    Saddle

    WTB Volt Race

    Seatpost

    KS LEV Integra, Internal Dropper, 31.6mm w/Southpaw Remote

    Type: Dropper

    Pedals

    DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins

    Grips

    Ergon GE10 Evo Lock-On

    Groupset
    Rear Derailleur

    SRAM GX Eagle, 12 Speed

    Front Derailleur

    N/A

    Crank

    SRAM Stylo 7K, 32T

    Shifters

    SRAM GX Eagle, 12 Speed

    Cassette

    SRAM GX Eagle, 10-50T

    Chain

    SRAM NX Eagle

    Brakes

    Shimano XT M8100, w/180mm Front / 180mm Rear, RT800 Rotors

    Type: Shimano Ultegra Hydraulic Disc

    Brake Levers

    Shimano XT M8100

    Wheels
    Rims

    Diamondback Blanchard 28R, Taped for Tubeless, 32h

    Spokes

    2.0/1.8/2.0 Double Butted Stainless Steel

    Front Hub

    Novatec SL-Team, 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing

    Rear Hub

    Novatec SL-Team, 32h Aluminum, 148x12mm Thru-axle, Sealed Cartridge Bearing, XD Driver

    Tires

    Maxxis Minion DHF 29x2.3" EXO, TR (Tubeless Ready), Folding / Maxxis Minion DHR 29x2.3" EXO, TR (Tubeless Ready), Folding
