Recommended |
---|
MSRP | $3,299 | |
---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Aluminum | ||
Fork | Fox Performance Float 34 | |
Shock | Fox Float DPX2 Performance | |
Wheels | Aluminum | |
29″ | ||
Brakes | Hydraulic Disc | |
Groupset | XT, Race Face | |
Drivetrain | 1 × 11 | |
Suspension | Full | |
Front Travel | 140mm | |
Rear Travel | 130mm | |
Brand Site | ||

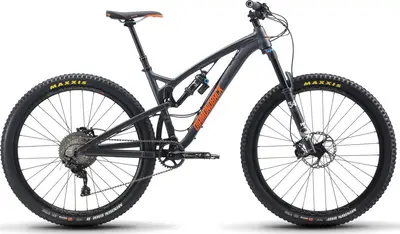

Summary | The Diamondback Release 29 3 is a 29″ aluminum frame full suspension trail bike with high-end components. |
Based on frame geometry and build specs.
Frame | Release 29, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube | |
---|---|---|
Fork | Fox 34 Performance Float, 29", 140mm Travel, Grip 3 Position Dampener, Rebound Adjust, 1.5" Tapered Steerer, 110x15mm Thru-axle | |
Shock | Fox Performance Float DPX2, 3 Position Lever, LV EVOL, 200x57mm, 22.2mm Eyelet Width | |
Bottom Bracket | Raceface Outboard Bearing | |
Headset | FSA No. 57 Sealed Cartridge | |
Stem | DB35 Alloy, 50mm Reach, 35mm Bar Bore | |
Handlebar | DB35 Alloy, 780mm Wide, 15mm Rise, 35mm Bar Bore | |
Saddle | WTB Volt Race | |
Seatpost | KS LEV SI Internal Dropper, 31.6mm w/Southpaw Remote, SM = 125mm, MD/LG/XL = 150mm | |
Pedals | DB CNC Platform, Sealed Cartidge Bearing w/Replaceable Pins | |
Grips | Ergon GE10 Evo Lock-On |
Rear Derailleur | Shimano XT M8000 Shadow Plus, 11 Speed, GS | |
---|---|---|
Crank | Raceface Turbine Cinch w/32T Direct Mount Narrow Wide | |
Shifters | Shimano XT M8000 Shadow Plus, 11 Speed | |
Cassette | Shimano XT M8000 Cassette, 11 Speed, 11-46T | |
Chain | KMC X11EL, 11 Speed | |
Brakes | Shimano XT M8000, w/180mm Front /180mm Rear Rotors | |
Brake Levers | Shimano XT M8000 |
Rims | Diamondback Blanchard 28R, Tubeless Ready, 32h | |
---|---|---|
Spokes | 14g Stainless Steel | |
Front Hub | 32h Alloy, Boost 110x15mm Thru-axle, Sealed Cartridge Bearing | |
Rear Hub | 32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette | |
Tires | Maxxis Minion DHF 29x2.3" EXO, TLR, Folding / Maxxis Minion DHR 29x2.3" EXO, TLR, Folding |
