 | Recommended |
|---|
MSRP | $1,499 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
| Aluminum | ||
Fork | RockShox Reba | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | GX, NX | |
Drivetrain | 1 × 11 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

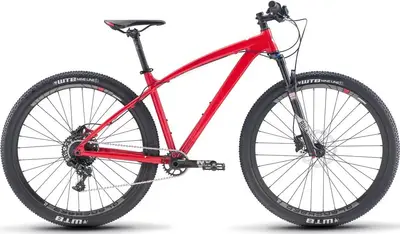

Summary | The Diamondback Overdrive 29 2 X is a 29″ aluminum frame hardtail crosscountry bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | Overdrive 29" Butted 6061-T6 Aluminum, Tapered Head Tube, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs, 148x12mm Dropouts w/ Replaceable Hanger | |
|---|---|---|
Fork | Rockshox Reba RL 29", Solo Air, 32mm Stanchion, 100mm Travel, w/ Rebound Adjust, Lockout, 100x15mm Thru-axle, 1.5" Taper Steerer Tube | |
Bottom Bracket | SRAM GXP | |
Headset | FSA NO.42, Sealed Cartridge for Tapered Headtube | |
Stem | DB 3D Forged, 7° Rise, 31.8 Bar Bore | |
Handlebar | Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore | |
Saddle | DB Race M-series Saddle | |
Seatpost | DB Alloy Micro Adjust, 30.9mm | |
Pedals | DB4L Alloy Platform w/ Replaceable Pins | |
Grips | New DB "Flanged" Lock-on, 135mm Silcone |
Rear Derailleur | SRAM GX X-Horizon, 11 Speed | |
|---|---|---|
Crank | SRAM NX 1x, w/ X-Sync 30T Chain Ring | |
Shifters | SRAM GX 11 Speed X-Actuation Trigger | |
Cassette | SRAM PG1130, 11 Speed, 11-42T | |
Chain | KMC X11EL, 11 Speed | |
Brakes | Shimano MT500 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors | |
Brake Levers | Shimano MT500 Hydraulic |
Rims | Diamondback Blanchard 25, Tubeless Ready | |
|---|---|---|
Spokes | 14g Stainless Steel | |
Front Hub | 32h Alloy 15MM Thru-Axle w/ Center Lock Disc Mount | |
Rear Hub | 32h Alloy, Boost 148x12mm Thru-axle, 5 Sealed Cartridge Bearing, Cassette w/ CNC Disc Mount | |
Tires | WTB Nineline, 29x2.25" |
