Bike Comparison
    Overdrive 29 22023 Diamondback
    Recommended
    MSRP
    $1,000
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    3.5
    Frame
    		Aluminum
    Fork
    		RockShox Judy
    Wheels
    		Aluminum
    Wheel Size
    		29″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Alivio, Altus
    Drivetrain
    		2 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    diamondback.com

    Summary

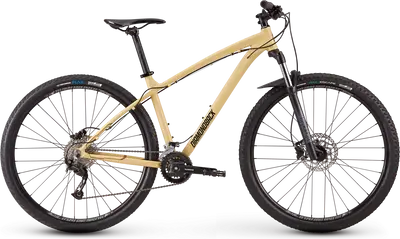

    		The Diamondback Overdrive 29 2 is a 29″ aluminum frame hardtail crosscountry bike with mid-range components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Overdrive 29 2
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Overdrive 29 2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Overdrive 29 22023 Diamondback
    Frame

    Overdrive 29" Butted 6061-T6 Aluminum Formed Top / Down Tube, Machined Headtube, Boost 141 QR, Forged Drop Outs, w/ Replaceable Hanger

    Fork

    Rockshox Judy TK, Coil Spring, Turn Key Lockout, 29" 100mm Travel, Quick Release

    Bottom Bracket

    CH-52 Sealed Cartridge

    Headset

    FSA IS-3/NO.11N

    Stem

    DB 3D Forged, 7° Rise, 31.8 Bar Bore

    Handlebar

    Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore

    Saddle

    DB Race M-series Saddle

    Seatpost

    DB Aluminum Micro Adjust, 30.9mm

    Pedals

    DB4L Aluminum Platform w/ Replaceable Pins

    Grips

    DB "Flanged" Lock-on, 135mm Silcone

    Groupset
    Rear Derailleur

    Shimano Alivio, M3100 Shadow Plus, 9 speed

    Front Derailleur

    Shimano Alivio side swing

    Crank

    Shimano Altus Aluminum 36/22T

    Shifters

    Shimano Altus, 2x9 RapidFire Plus

    Cassette

    Shimano 9 Speed, 11-36T

    Chain

    KMC X9

    Brakes

    Shimano MT200 Hydraulic Disc w/ 180mm Front / 160mm Rear Rotors

    Brake Levers

    Shimano MT200 Hydraulic

    Wheels
    Rims

    DB DP-25 Aluminum 25mm internal width, Double Wall Rim, 32H, Not Taped

    Spokes

    14g Stainless Steel

    Front Hub

    Aluminum 32h Disc, 6 Bolt Quick Release

    Rear Hub

    Aluminum Cassette Disc, 6 Bolt, 141 Boost, Quick Release

    Tires

    Front – Vee Rail Escape 29x2.25”, Non Tubeless Tire Rear – Vee Rail 29x1.95” Non Tubeless Tire
