 | Recommended |
|---|
MSRP | $999 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
| Aluminum | ||
Fork | RockShox Judy Silver TK | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | Acera, Alivio | |
Drivetrain | 2 × 9 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

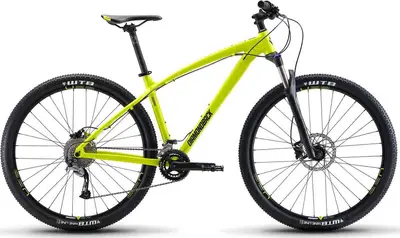

Summary | The Diamondback Overdrive 29 2 is a 29″ aluminum frame hardtail crosscountry bike with mid-range components. | |
Based on frame geometry and build specs.
Frame | Overdrive 29" Butted 6061-T6 Aluminum, Tapered Head Tube, Formed Top / Down Tube, Machined Headtube, Forged Drop Outs, 148x12mm Dropouts w/ Replaceable Hanger | |
|---|---|---|
Fork | Rockshox Judy Silver 29", Solo Air, 100mm Travel, w/ Rebound Adjust, Lockout, 110x15mm Thru-axle, 1.5" Taper Steerer Tube | |
Bottom Bracket | FSA MegaEXO | |
Headset | FSA NO.42, Sealed Cartridge for Tapered Headtube | |
Stem | DB 3D Forged, 7° Rise, 31.8 Bar Bore | |
Handlebar | Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore | |
Saddle | DB Race M-series Saddle | |
Seatpost | DB Alloy Micro Adjust, 30.9mm | |
Pedals | DB4L Alloy Platform w/ Replaceable Pins | |
Grips | New DB "Flanged" Lock-on, 135mm Silcone |
Rear Derailleur | Shimano Acera | |
|---|---|---|
Front Derailleur | Shimano Alivio | |
Crank | FSA Comet, Alloy Rings, 26 / 36 Tooth | |
Shifters | Shimano Acera, 2x9 RapidFire Plus | |
Cassette | Shimano 9 Speed, 11-36T | |
Chain | KMC X9 | |
Brakes | Shimano MT200 Hydraulic Disc, w/ 180mm Front and 160mm Rear Rotors | |
Brake Levers | Shimano MT200 Hydraulic |
Rims | DB DP-25 Double Wall Alloy Rim, 32H | |
|---|---|---|
Spokes | 14g Stainless Steel | |
Front Hub | Formula DC-511, 15x110mm Thru Axle, 6 Bolt | |
Rear Hub | Formula DC-1248 12x148mm Thru Alxe, 6 Bolt | |
Tires | WTB Nineline, 29x2.25" |
