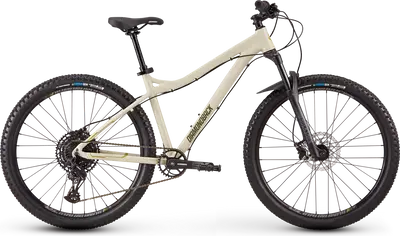

    Lux 32023 Diamondback
    Recommended
    MSRP
    $1,400
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    4.8
    Frame
    		Aluminum
    		RockShox Judy Silver TK
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Hydraulic Disc
    		SX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    diamondback.com

    Summary
    		The Diamondback Lux 3 is a 27.5″ aluminum frame hardtail trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Lux 3
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    Lux 3

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Lux 32023 Diamondback
    Frame

    Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube, Tapered Headtube, 9mm Quick Release Boost Drop Outs w/ Replaceable Hanger

    Fork

    Rock Shox Judy Silver TK, 120mm Travel, Solo Air Spring, External Rebound Adjust w/ Turnkey Lockout, Magnesium Lowers, 30mm Steel Stanchions, Aluminum 1.5" Tapered Steerer Tube, Boost 110x15mm Thru-axle

    Travel: 120mm

    Spring Type: Air

    Bottom Bracket

    SRAM Powerspline

    Headset

    FSA NO.57, Sealed Cartridge for Tapered Headtube

    Stem

    DB 3D Forged, 7° Rise, 31.8 Bar Bore

    Handlebar

    DB Alloy Riser, 15mm Rise, 740mm Wide, 31.8mm Bar Bore

    Saddle

    DB Performance MTB Saddle

    Seatpost

    KS EXO Form 900i, 30.9mm

    Type: Dropper

    Pedals

    DB4L Aluminum Platform

    Grips

    DB "Flanged" 135mm Silcone

    Groupset
    Rear Derailleur

    SRAM SX, 12 Speed

    Crank

    SRAM SX w/ X-Sync 34T Chain Ring

    Shifters

    SRAM SX Eagle 12 Speed X-Actuation Trigger

    Cassette

    SRAM PG1210, 12 Speed, 11-50T

    Chain

    SRAM SX Eagle, 12 Speed, Power Link

    Brakes

    Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BR-M200 Hydraulic Lever w/ Reach Adjust

    Wheels
    Rims

    32h Diamondback DP25 Doublewall, Tubeless Compatible Rim, Not Taped

    Spokes

    14g Stainless Steel

    Front Hub

    32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearings, w/ CNC Disc Mount

    Rear Hub

    32h Aluminum 9mm Quick Release, Cassette w/ CNC Disc Mount, 141mm Boost spacing

    Tires

    Vee Tire Crown Gem 27.5x2.35 Tires Non Tubeless Tire
