    Lux 22022 Diamondback
    Recommended
    MSRP
    $1,000
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    3.9
    Frame
    		Aluminum
    		RockShox Judy
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Shimano Hydraulic Disc
    		Alivio, Altus
    Drivetrain
    		2 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    diamondback.com

    Summary

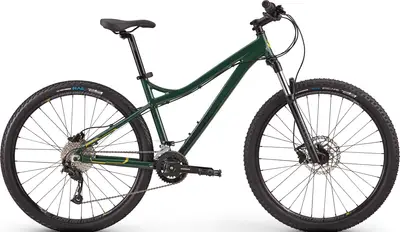

    		The Diamondback Lux 2 is a 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Lux 2
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    27 mph

    Lux 2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Lux 22022 Diamondback
    Frame

    Lux 27.5 Double Butted 6061-T6 Aluminum Super Low TT for Increased Clearance, w/ Formed Top / Down Tube, 9mm Quick Release Boost Drop Outs w/ Replaceable Hanger

    Fork

    Rock Shox Judy TK 27.5", 100mm Travel, Coil Spring w/Preload Adjust, 30mm Stanchions, Magnesium Lower, Aluminum Crown, Quick Release

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    Sealed Cartridge

    Headset

    1 1/8" Zero Stack

    Stem

    DB 3D Forged, 7° Rise, 31.8 Bar Bore

    Handlebar

    Diamondback, 740mm Wide, 15mm Rise, 31.8 Bar Bore

    Saddle

    DB Performance MTB Saddle

    Seatpost

    DB Aluminum Micro Adjust, 30.9mm

    Type: Rigid

    Pedals

    DB Aluminum Platform

    Grips

    DB "Flanged" 135mm Silcone

    Groupset
    Rear Derailleur

    Shimano Alivio M3100, Shadow Plus, 9 Speed

    Front Derailleur

    Shimano Alivio, Side Swing, Front Pull, Direct Mount for 2x9

    Crank

    Shimano MT-10 36/22T

    Shifters

    Shimano Altus, 2x9 Speed Rapidfire

    Cassette

    Shimano HG200, 9 Speed Cassette, 11-32T

    Chain

    KMC Z9, 9 Speed

    Brakes

    Shimano BR-M200 Hydraulic Disc, w/ 180mm Front /160mm Rear Rotors

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BR-M200 Hydraulic Lever w/ Reach Adjust

    Wheels
    Rims

    32h Diamondback DP25 Doublewall, Tubeless Compatible Rim, Not Taped

    Spokes

    14g Stainless Steel

    Front Hub

    32h Aluminum w/ CNC Disc Mount; 100mm

    Rear Hub

    32h Aluminum 9mm Quick Release Cassette w/ CNC Disc Mount, 141mm boost spacing

    Tires

    Vee Tire Rail Escape Front 27.5x2.35, Non Tubeless Tire ; Rail Rear 27.5x1.95, Non Tubeless Tire
