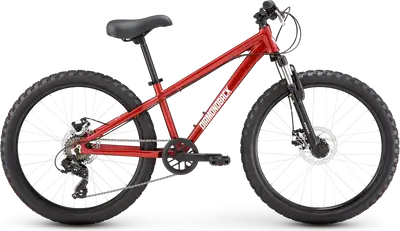

    Hook 242023 Diamondback
    Recommended
    MSRP
    $550
    Where to Buy
    —
    $1

    At

    Category
    		Mountain Youth
    1.9
    Frame
    		Aluminum
    		Zoom
    Wheels
    		Aluminum
    Wheel Size
    		24″
    		Mechanical Disc
    		Tourney
    Drivetrain
    		1 × 7
    Suspension
    		Hardtail
    Front Travel
    		50mm
    Brand Site

    diamondback.com

    Summary
    		The Diamondback Hook 24 is a 24″ aluminum frame mountain youth bike with mid-range components and mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Handling
    nimblestable
    Hook 24
    Other Mountain Youth bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    14 mph

    Hook 24

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Hook 242023 Diamondback
    Frame

    6061 T-6 Aluminum Jr-24" Frame, Formed Tubing, Disc Specific w/ Replaceable Hanger

    Fork

    Zoom 386A MTB Suspension Fork, 50mm of Travel, 9mm QR

    Travel: 50mm

    Shock

    N/A

    Bottom Bracket

    Cartridge Bearing, 119mm Spindle

    Headset

    1 1/8" Internal Cartridge Bearing

    Stem

    Alloy Youth Stem, 50mm Length

    Handlebar

    Aluminum Youth MTB, 580mm Wide, 18mm Rise, 25.4 Bar Bore

    Saddle

    Cionlli Youth MTB Saddle

    Seatpost

    Aluminum 27.2mm Post

    Type: Rigid

    Pedals

    DB 806 Resin Platform

    Grips

    Youth MTB Grip, 110mm

    Groupset
    Rear Derailleur

    Shimano Tourney TY300, 7 Speed

    Front Derailleur

    N/A

    Crank

    Aluminum Arm, w/ 28T Steel Single Ring, 152mm

    Shifters

    Shimano M315 Tigger Shifter

    Cassette

    Shimano TZ500, 14-28T

    Chain

    KMC Z7, 7 Speed

    Brakes

    Mechanical Disc

    Type: Mechanical Disc

    Brake Levers

    MTB Disc Brake Lever, Alloy Arm

    Wheels
    Rims

    32h Diamondback Doublewall

    Spokes

    14g Stainless Steel

    Front Hub

    KT 32h Aluminum w/ CNC Disc Mount, 100mm

    Rear Hub

    KT 32h Aluminum w/ CNC Disc Mount, 135mm

    Tires

    MTB Wanda Tire 24x2.25"
