    Hatch 32024 Diamondback
    Recommended
    MSRP
    $775
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    3.5
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		Tektro Hydraulic Disc
    		Tourney, Altus
    Drivetrain
    		3 × 7
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    diamondback.com

    Summary

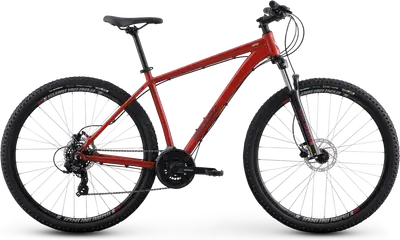

    		The Diamondback Hatch 3 is a 27.5″ aluminum frame hardtail crosscountry bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Hatch 3
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    29 mph

    Hatch 3

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Hatch 32024 Diamondback
    Frame

    Custom Formed AL-6061 Heat Treated Aluminum with Progressive wheel Sizing (27.5" - XS,S) (29" - M,L,XL)

    Fork

    SR Suntour XCM-DS 100mm of Travel with Pre-Load Adjuster, for IS Post Mount Disc

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    Sealed Cartridge Bearing

    Headset

    1-1/8" Semi Integrated Cartridge Bearing

    Stem

    Aluminum MTB 31.8 Bar Bore Stem

    Handlebar

    Aluminum 31.8mm Bar, 25mm Rise

    Saddle

    MTB Saddle

    Seatpost

    Aluminum 27.2 Post with 15mm Offset

    Type: Rigid

    Pedals

    Wellgo Plastic Body

    Grips

    MTB Grip

    Groupset
    Rear Derailleur

    Shimano Tourney TX800

    Front Derailleur

    Shimano Tourney TY500 Dual Pull

    Crank

    Shimano Tourney TY301,42/34/24t

    Shifters

    Shimano M310 3x7 Speed Rapid Fire Shifter

    Cassette

    Shimano GH20 Cassette, 7speed, 12-32 Tooth

    Chain

    KMC Z7

    Brakes

    Tektro M275 IS Post Mount, Hydraulic with 160mm Rotors F/R

    Type: Tektro Hydraulic Disc

    Brake Levers

    Tektro M275 Hydraulic

    Wheels
    Rims

    Aluminum MTB DDM-2 Double Wall, 32 hole, Not Taped

    Spokes

    Stainless Steel

    Front Hub

    Formula DC-20F, 6 Bolt, Disc, Quick Release

    Rear Hub

    Formula DC-22-7R, 6 Bolt, Disc, Quick Release

    Tires

    Vee Tire Co. Rubber Rail Escape, 27.5x2.25 or 29x2.25", Non Tubeless Tire
