Bike Comparison
    Haanjo 32020 Diamondback
    Recommended
    MSRP
    $1,175
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    2.2
    Frame
    		Aluminum
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano Sora Mechanical Disc
    		Sora
    Drivetrain
    		2 × 9
    Brand Site

    diamondback.com

    Summary

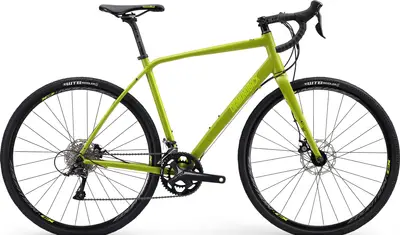

    		The Diamondback Haanjo 3 is an aluminum frame gravel bike with mid-range components and shimano sora mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Haanjo 3
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    Haanjo 3

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Haanjo 32020 Diamondback
    Frame

    DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Alloy, Formed Top Tube, Tapered Headtube, Flat Mount Disc, Replaceable Hanger

    Fork

    DB SPF Formed Alloy Gravel Disc w/1.5" Tapered Steerer Tube

    Bottom Bracket

    FSA Mega Exo

    Headset

    FSA No.42B, Sealed Cartridge

    Stem

    HED Eroica, 6061 Alloy, 3D Forged, +/-7° Rise, 31.8 Bar Bore

    Handlebar

    HED Eroica, 7050 Alloy, 12 Degree Flare, 31.8mm Bar Bore

    Saddle

    Diamondback Performance Mens Gravel Road

    Seatpost

    HED Eroica, 6061 Alloy, 27.2mm

    Type: Rigid

    Pedals

    DB Resin Gravel Platform

    Grips

    Diamondback Endurance Gel Tape

    Groupset
    Rear Derailleur

    Shimano Sora RD-R3000, 9 Speed, GS

    Front Derailleur

    Shimano Sora FD-R3000, 31.8 Band Clamp

    Crank

    FSA Omega Adventure, 46/30T

    Shifters

    Shimano Sora ST-R3000, 2x9 Speed

    Cassette

    Shimano HG400, 9 Speed Cassette, 11-32T

    Chain

    KMC Z9, 9 Speed

    Brakes

    Shimano Sora ST-R3000

    Type: Shimano Sora Mechanical Disc

    Brake Levers

    Shimano Sora ST-R3000

    Wheels
    Rims

    Diamondback Equation CX, 28h, Doublewall

    Spokes

    14g Stainless Steel

    Front Hub

    28h Alloy Quick Release

    Rear Hub

    28h Alloy Quick Release, Cassette

    Tires

    WTB Riddler Comp, 700x37c
