Bike Comparison
    Haanjo 22021 Diamondback
    Recommended
    MSRP
    $925
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    2.5
    Frame
    		Aluminum
    Fork
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		700c
    Brakes
    		Mechanical Disc
    Motor
    Battery
    Groupset
    		Claris
    Drivetrain
    		2 × 8
    Brand Site

    diamondback.com

    Summary

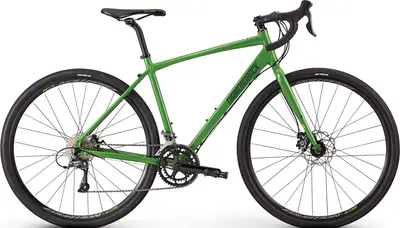

    		The Diamondback Haanjo 2 is an aluminum frame gravel bike with mid-range components and mechanical disc brakes.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Haanjo 2
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    Haanjo 2

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Haanjo 22021 Diamondback
    Frame

    DB Alternative Road, Disc Brake, Endurance Geometry, Relaxed Head Tube Angle, Fully Butted 6061-T6 Aluminum Formed Top Tube, 1 1/8" Headtube, Replaceable Hanger

    Fork

    DB Steel Gravel Disc, 1-1/8" Steerer Tube, w/ Fender Mounts/ Low Rider Mounts

    Bottom Bracket

    Steel Cartridge

    Headset

    FSA IS-3/ No.11 Integrated Style

    Stem

    HED Eroica, 6061 Aluminum 3D Forged, +/-7° Rise, 31.8 Bar Bore

    Handlebar

    HED Eroica, 7050 Aluminum 8 Degree Flare, 31.8mm Bar Bore

    Saddle

    DB Eldorado

    Seatpost

    HED Eroica, 6061 Aluminum 27.2mm

    Pedals

    DB4L Aluminum Platform

    Grips

    Diamondback Endurance Tape

    Groupset
    Rear Derailleur

    Shimano Claris RD-2400, 8 Speed

    Front Derailleur

    Shimano Claris FD-2400, 31.8mm Band Clamp

    Crank

    Aluminum Cross Compact, 46/34T w/ Aluminum Big Ring

    Shifters

    Shimano Claris ST-2400 STI, 2x8 Speed

    Cassette

    Shimano HG50 Cassette, 8 Speed, 11-32T

    Chain

    KMC Z82, 8 Speed

    Brakes

    Tektro Lyra Flat Mount Mechanical Disc, w/ 160mm Front / 140mm Rear Rotors

    Brake Levers

    Shimano Claris ST-2400

    Wheels
    Rims

    Diamondback Equation, 28h, Doublewall

    Spokes

    14g Stainless Steel

    Front Hub

    28h Aluminum Quick Release

    Rear Hub

    28h Aluminum Quick Release, Cassette

    Tires

    Vee Rubber, Speedster, Wire Bead, 700x40c
