    Catch 12023 Diamondback
    Recommended
    MSRP
    $2,550
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    5.4
    Frame
    		Aluminum
    		Suntour AION
    		Suntour
    Wheels
    		Aluminum
    Wheel Size
    		27.5″
    		TRP Hydraulic Disc
    		SX Eagle
    Drivetrain
    		1 × 12
    Suspension
    		Full
    Front Travel
    		130mm
    Rear Travel
    		130mm
    Brand Site

    diamondback.com

    Summary

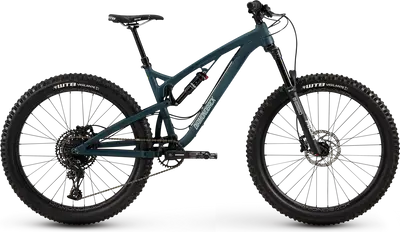

    		The Diamondback Catch 1 is a 27.5″ aluminum frame full suspension trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Catch 1
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    24 mph

    Catch 1

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Catch 12023 Diamondback
    Frame

    Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube

    Fork

    SR Suntour Aion 27.5"+/29", 130mm Travel, Air Spring w/Rebound Adjust, 35mm Stanction, 1.5" Aluminum Taper Steerer, 110x15mm Thru-axle

    Travel: 130mm

    Spring Type: Air

    Shock

    Suntour Edge R, 200x57mm, Rebound Adjust, 22.2mm Eyelet Width

    Travel: 130mm

    Bottom Bracket

    SRAM Powerspline, 118/73

    Headset

    FSA No. 57, Sealed Cartridge

    Stem

    DB35 Aluminum 35mm Reach, 35mm Bar Bore

    Handlebar

    DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore

    Saddle

    WTB Koda Comp

    Seatpost

    Kindshock EXA Form 900i, Internal Dropper, 31.6mm w/1x Remote

    Type: Dropper

    Pedals

    DB Aluminum Platform w/Replaceable Pins

    Grips

    DB Lock-On Grip

    Groupset
    Rear Derailleur

    SRAM SX Eagle, 12 Speed

    Crank

    SRAM SX w/Steel 32T Direct Mount

    Shifters

    SRAM SX Eagle, 12 Speed

    Cassette

    SRAM PG1210, 12 Speed, 11-50T

    Chain

    SRAM SX Eagle, 12 Speed

    Brakes

    TRP Slate X2, w/ 180mm Front / 180mm Rear Rotors

    Type: TRP Hydraulic Disc

    Brake Levers

    TRP Slate

    Wheels
    Rims

    Diamondback Blanchard 38R, 32h, Tubeless Compatible Rim, Taped for Tubeless

    Spokes

    14g Stainless Steel

    Front Hub

    32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing

    Rear Hub

    32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette

    Tires

    WTB Vigilante 27.5x2.8", Wire Bead, Non Tubeless Tire
