MSRP | ($1,595) | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Commuter | |
Weight | 34.6 lbs | |
Frame | Aluminum | |
| Suntour | ||
Wheels | Aluminum | |
Wheel Size | 29″ | |
| Shimano Hydraulic Disc | ||
| CUES | ||
Drivetrain | 1 × 11 | |
Suspension | Hardtail | |
Front Travel | 75mm | |
Brand Site | ||

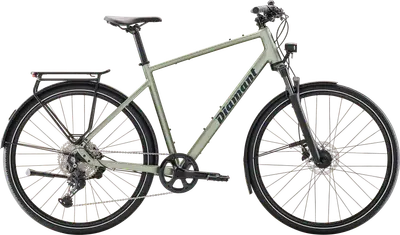

Summary | The Diamant Mahon Trip Plus (Stepover) is a 29″ aluminum frame commuter bike with mid-range components and shimano hydraulic disc brakes. | |
Ask 99 Spokes
Frame | Alpha Smooth Aluminium, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount Color: Heugrün | |
|---|---|---|
Fork | SR Suntour NCX32, coil spring, 75 mm suspension Travel: 75mm Spring Type: Coil | |
Headset | FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom | |
Stem | Bontrager Stem Elite, 80mm 7 degree, 31.8mm, Black - M: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length; M: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 80 mm length; L: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length; L: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length; XL: Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length; XL: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length | |
Handlebar | Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width | |
Saddle | Bontrager Commuter Comp 185mm Black - M, L, XL: Bontrager Commuter Comp; M, L, XL: Selle Royal Vivo Moderate Ergo | |
Seatpost | Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length Type: Rigid | |
Pedals | VP-536 nylon platform | |
Grips | Bontrager Grip XR Endurance Comp 130mm Black - M, L, XL: Bontrager XR Endurance Comp, lock-on; M, L, XL: Trek Ergonomic Comp, lock-on |
Rear Derailleur | Shimano CUES U6000 GS | |
|---|---|---|
Crank | ProWheel alloy, 42T, 175 mm | |
Shifters | Shimano U6000, 11-speed | |
Cassette | Shimano CUES LG400, LINKGLIDE, 11-50, 11-speed | |
Chain | Shimano LG500, 9/10/11-speed | |
Brakes | Shimano MT200 hydraulic disc Type: Shimano Hydraulic Disc |
Rims | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve | |
|---|---|---|
Spokes | 14 g stainless steel, black | |
Front Hub | Shimano 3.0 watt dynamo hub | |
Rear Hub | Shimano QC400, 32-hole, centerlock, 135x5 mm | |
Tires | Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content | |
Disc Rotors | Shimano SM-RT30, CentreLock, 160 mm |
Lights | Spanninga Pimento Large XDVS Rear Light. 6V AC for Dynamo use. Rack mount 50mm. With standlight function. - M, L, XL: Spanninga Pimento Large, with stand light function; M, L, XL: Herrmans Nordic MR9, 180 lumen, LED, with stand light function | |
|---|---|---|
Fenders | Fender SKS 700x56mm S/M Black Rear - M, L, XL: SKS plastic, rear; M, L, XL: SKS plastic, front |
