MSRP | ($2,677) | $1,799 |
|---|---|---|
Where to Buy | — $1 At | — $1 At |
Category | Endurance | Endurance |
Weight | 18.3 lbs | 23.0 lbs |
| Carbon | Aluminum | |
Fork | Carbon | Carbon |
Wheels | Aluminum | Aluminum |
Wheel Size | 700c | 700c |
Clearance | 35c | |
Brakes | Hydraulic Disc | Hydraulic Disc |
Groupset | Ultegra | Tiagra |
Drivetrain | 2 × 11 | 2 × 10 |
Brand Site | ||

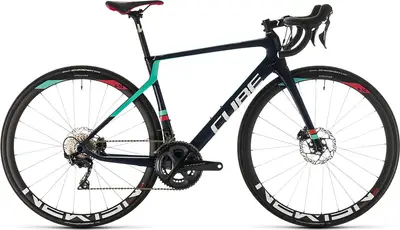

Summary | The CUBE AXIAL WS C:62 SL is a carbon frame women’s endurance bike with high-end components and hydraulic disc brakes. | |
Based on frame geometry and build specs.
Frame | C:62, Carbon Technology, CUBE CSL Evo Aero C:62 Technology, Flat Mount Color: Team Ws | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle Color: Team Ws |
|---|---|---|
Fork | CUBE CSL Evo Aero C:62 Technology, 1 1/8" / 1 1/4" Tapered, Flat Mount, 12x100mm | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
Bottom Bracket | Shimano RS500, 68mm, threaded external | |
Headset | FSA I-t; Top Integrated 1 1/8", Bottom Integrated 1 1/4" | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
Stem | Newmen Evolution 318.4, 31.8mm | Size: 44, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length; Size: 49, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length; Size: 52, 54, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length; Size: 56, 58, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length; Size: 61, Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
Handlebar | Newmen Advanced Wing Bar, Carbon | Size: 44, 49, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width; Size: 52, Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width; Size: 54, 56, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width; Size: 58, 61, Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width |
Saddle | Natural Fit Venec WS | Size: 44, 49, 52, Bontrager Verse Comp, steel rails, 155mm width; Size: 54, 56, 58, 61, Bontrager Verse Comp, steel rails, 145mm width |
Seatpost | Newmen Advanced, Carbon, 27.2mm | Size: 44, 49, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length; Size: 52, 54, 56, 58, 61, Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
Rear Derailleur | Shimano Ultegra, 11-32T, 2x11 | Shimano Tiagra 4700, long cage, 34T max cog |
|---|---|---|
Front Derailleur | Shimano Ultegra FD-R8000-F | Shimano Tiagra 4700, 31.8mm clamp |
Crank | Shimano Ultegra, 50x34T | Size: 44, Shimano Tiagra 4700, 50/34, 165mm length; Size: 49, 52, Shimano Tiagra 4700, 50/34, 170mm length; Size: 54, 56, Shimano Tiagra 4700, 50/34, 172.5mm length; Size: 58, 61, Shimano Tiagra 4700, 50/34, 175mm length |
Shifters | Shimano Ultegra ST-R8025 | Shimano Tiagra R4725, short reach lever, 10 speed |
Cassette | Shimano Ultegra CS-R8000, 11-32T | Shimano HG500, 11-32, 10 speed |
Chain | Shimano CN-HG701 | Shimano Tiagra HG54, 10 speed |
Brakes | Shimano Ultegra | Size: 44, 49, 52, 54, 56, 58, 61, Shimano Tiagra hydraulic disc; Size: 44, 49, 52, 54, 56, 58, 61, Shimano Tiagra hydraulic disc, flat mount |
Rims | Newmen Evolution SL R.32 | Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, Presta valve; Size: 44, 49, 52, 54, 56, 58, 61, Bontrager Paradigm, Tubeless Ready, 24-hole, 21mm width, Presta valve |
|---|---|---|
Spokes | 14g stainless steel, black | |
Front Hub | Formula RX-512 alloy, 6-bolt, 100x12mm thru axle | |
Rear Hub | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle | |
Tires | Conti Grand Sport Race SL, 28-622 | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32mm |
Disc Rotors | Shimano RT66, 6-bolt, 160mm |
