 | Recommended |
|---|
MSRP | $5,000 | |
|---|---|---|
Where to Buy | — $1 At | |
Category | Trail | |
Weight | 32.0 lbs | |
| Aluminum | ||
Fork | Öhlins RXF36 | |
Shock | Öhlins | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | GX Eagle | |
Drivetrain | 1 × 12 | |
Suspension | Full | |
Front Travel | 140mm | |
Rear Travel | 125mm | |
Brand Site | ||

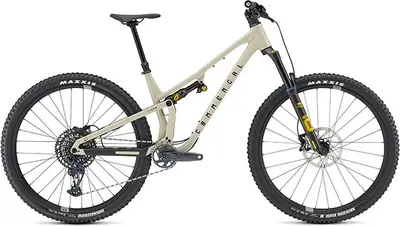

Summary | The Commençal T.E.M.P.O. OHLINS is a 29″ aluminum frame full suspension trail bike with high-end components. | |
Based on frame geometry and build specs.
Frame | T.E.M.P.O. 125 mm travel, 29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings Color: Chalk, Matte Finish | |
|---|---|---|
Fork | OHLINS RXF 36 m.2 Air, 140 mm travel, 29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, Boost (15 x 110 mm), 51 mm offset | |
Shock | OHLINS TTX1 Air, 210 x 50 mm, rebound, 3 positions, Evol LV | |
Bottom Bracket | SRAM DUB, Pressfit | |
Headset | ACROS ZS56 / ZS56, Alloy cups, sealed bearings, Integrated cable routing | |
Stem | RIDE ALPHA 40, 40 mm extension, 31,8 mm | |
Handlebar | RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL | |
Saddle | FIZIK Terra Alpaca X5, 145 mm width, S-alloy rails | |
Seatpost | KS Lev Integra, 31.6 mm, 150 mm on S, 175 mm on M, 200 mm on L/XL | |
Grips | ODI Elite Motion, Single clamp, black |
Rear Derailleur | SRAM GX Eagle, 12s | |
|---|---|---|
Crank | SRAM GX Eagle, 170 mm crank arms, Boost, Chainring: SRAM GX Eagle, 32t, Narrow-Wide | |
Shifters | SRAM GX Eagle, 12s | |
Cassette | SRAM GX Eagle, 12s, 10-52t | |
Chain | SRAM GX Eagle, 12s | |
Brakes | TRP Trail EVO, 4 pistons, resin pads, Rotor: TRP R1 203 / 180 mm, 6-bolt |
Rims | CRANKBROTHERS Synthesis Enduro Alloy, Front: 29", 28 holes, 31.5mm inner width - Rear: 29", 32 holes, 29.5mm inner width | |
|---|---|---|
Front Hub | Rear: INDUSTRY NINE 1/1 - Front: INDUSTRY NINE 1/1, Rear: 32 holes, 6 pawls - Front: 28 holes | |
Rear Hub | Rear: INDUSTRY NINE 1/1 - Front: INDUSTRY NINE 1/1, Rear: 32 holes, 6 pawls - Front: 28 holes | |
Tires | Rear: MAXXIS Dissector - Front: MAXXIS DHR II, Rear: 29" x 2.4" WT, dual compound, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready |
