    Pathlite:ON 9.02020 Canyon
    Recommended
    MSRP
    ($5,816)
    Where to Buy
    —
    $1

    At

    Category
    		Fitness, E-Bike
    Weight
    		60.6 lbs
    5.8
    Frame
    		Aluminum
    		Suntour XCR Air
    Wheels
    		Aluminum
    Wheel Size
    		27.5″ / 29″
    		Shimano XT Hydraulic Disc
    		Bosch 600W 75Nm mid-drive
    		Bosch 500Wh
    		XT
    Drivetrain
    		1 × 12
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    canyon.com

    Summary

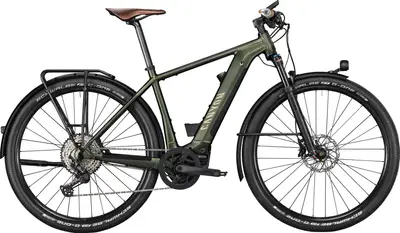

    		The Canyon Pathlite:ON 9.0 is a 27.5″ / 29″ aluminum frame fitness e-bike with high-end components and shimano xt hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Pathlite:ON 9.0
    Other Fitness bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    36 mph

    Pathlite:ON 9.0

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Pathlite:ON 9.02020 Canyon
    Frame

    Canyon Pathlite:ON, Material: Aluminium, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180, Interface: 40 mm Kickstand Mount

    Color: Tundra Green

    Fork

    SR Suntour XCR34 Air, Axle dimension: 15x110 mm, Stanchion Diameter: 34 mm, Travel: 100 mm, Fork steer tube diameter: 1 1/8"

    Travel: 100mm

    Spring Type: Air

    Saddle

    Brooks C17

    Seatpost

    Canyon SP0041 VCLS CF, Material: Carbon, Setback: 20 mm, Technology: VCLS

    Type: Rigid

    Grips

    Ergon GP1 BioKork

    Groupset
    Rear Derailleur

    Shimano Deore XT, 12-speed, Precise 1x12 drivetrain.

    Crank

    FSA CK-220 GEN4 ISIS

    Shifters

    Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g

    Cassette

    Shimano SLX, 12-speed (10-51), Cassette size: 10-51T. Gear range: 510%.

    Chain

    Shimano CN-M7100 12s, Chain featuring SIL-TEC ultra-low friction surface treatment on inner plate for precise shifting and improved durability. Extended inner plates also improve chain engagement and retention. With quick link for fast fitting and assembly. | Shimano CN-M7100 12-speed Chain

    Brakes

    Shimano Deore XT M8100, Shimano XT delivers consistent and reliable braking with outstanding power modulation. | Shimano Deore XT M8100

    Type: Shimano XT Hydraulic Disc

    Wheels
    Rims

    Alexrims MD25 | Shimano MT400, Rotor Mount: Center Lock | Alexrims MD25 | Shimano MT510 SH12, Rotor Mount: Center Lock

    Tires

    Schwalbe G-One Allround 57 mm, Width: 2.25"

    Disc Rotors

    Shimano EM300, Disc Mount: Centerlock | Shimano RT54

    Electric Components
    Motor

    Bosch Performance Line CX (Gen4)

    Battery

    Bosch PowerTube | Bosch PowerPack, 500 Wh / 500 Wh

    Display

    Bosch Nyon

    Charger

    Bosch Standard 4A

    Accessories
    Lights

    Supernova M99 Mini Pro 25 | Supernova Universal Fender Tail Light

    Fenders

    Fender Set 68 mm

    Racks

    AL Fenders with Canyon Rack, Compatible with QL3.1 Bags & Baskets, Max. load 25 kg
