Bike Comparison
    MSRP
    ($5,493)
    Where to Buy
    $1

    At

    Category
    Trail
    Weight
    29.2 lbs
    9.5
    Carbon
    Fork
    DT Swiss F 535 ONE
    Shock
    DT Swiss R 535 ONE
    Wheels
    Carbon
    27.5″ / 29″
    Brakes
    Hydraulic Disc
    Groupset
    X01 Eagle AXS
    Drivetrain
    1 × 12 Electronic
    Suspension
    Full
    Front Travel
    140mm
    Rear Travel
    130mm
    Brand Site

    canyon.com

    Summary

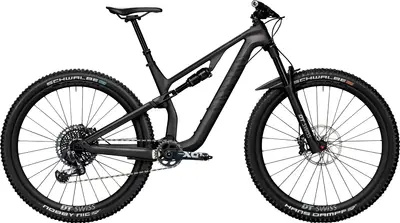

    The Canyon Neuron CF LTD is a 27.5″ / 29″ carbon frame full suspension trail bike with ultra high-end components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Neuron CF LTD
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Neuron CF LTD

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Frame

    Canyon Neuron CF, Material: Carbon (CF)

    BB StandardBSA, 68mm, Threaded

    ColorLimited Black

    Fork

    DT Swiss F535, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1 1/4"

    Shock

    DT Swiss R535

    Bottom Bracket

    SRAM BSA DUB, SRAM BSA bottom bracket with DUB (Durable Unified Bottom Bracket) technology for optimal power transfer. With sealed cartridge bearings for dependable protection against dirt and moisture. Shell width: 68 / 73 mm.

    Stem

    Race Face Turbine 35

    Handlebar

    Race Face Next 35, Width: 760 mm

    Saddle

    Ergon SM10 Sport, Gender: Male

    Seatpost

    Race Face Turbine R, Clamp diameter: 30,9 mm

    Pedals

    None included

    Grips

    Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.

    Groupset
    Rear Derailleur

    SRAM X01 Eagle AXS, Precise 1x12 rear derailleur with wireless AXS technology., Cage Length: long

    Crank

    SRAM X01 Eagle DUB, Number of chainrings: 1

    Shifters

    SRAM Eagle AXS Controller, Unsurpassed wireless 12 speed shifting. No need for cables, no need for fiddly cockpits, the AXS system frees up handlebar space and keeps gear changes neat and tidy.

    Cassette

    SRAM XG Eagle 10-52, All the range you need to climb the biggest mountains, courtesy of SRAM's 10-52, 12-speed cassette.

    Chain

    SRAM GX Eagle 12-speed

    Brakes

    SRAM G2 RSC | DB SRAM G2 RSC 1550 PM bk

    Wheels
    Rims

    DT Swiss XMC 1200 XD, Rotor Mount: Center Lock, Wheelsize: 29" | DT Swiss XMC 1200, Rotor Mount: Center Lock, Wheelsize: 29"

    Tires

    Schwalbe Nobby Nic 2.35" | Schwalbe Hans Dampf 2.35", The original all-rounder, the Hans Dampf rolls quick yet offers reliable traction in a wide range of conditions.

    Disc Rotors

    SRAM Centerline Rounded Edges, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare. | SRAM Centerline, 180mm
