 | Recommended  |
|---|
MSRP | $2,299 | $2,299 |
|---|---|---|
Where to Buy | — $1 At | — $1 At |
Category | Trail | Trail |
Weight | 33.5 lbs | 33.3 lbs |
| Aluminum | Aluminum | |
Fork | RockShox Judy Silver TK | RockShox Recon Silver RL (air) |
Shock | RockShox Deluxe Select+ | RockShox Deluxe Select+ |
Wheels | Aluminum | Aluminum |
| 27.5″ / 29″ | 27.5″ / 29″ | |
Brakes | Hydraulic Disc | Hydraulic Disc |
Groupset | SX Eagle | SX Eagle |
Drivetrain | 1 × 12 | 1 × 12 |
Suspension | Full | Full |
Front Travel | 130mm | 140mm |
Rear Travel | 130mm | - |
Brand Site | ||

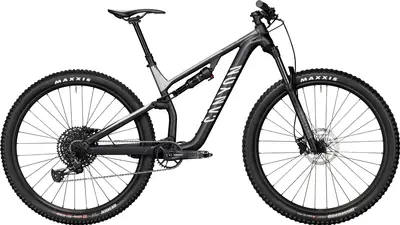

Summary | The Canyon Neuron 5 is a 27.5″ / 29″ aluminum frame full suspension trail bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180 BB Standard: BSA, 73mm, Threaded Colors: Stealth; Flash Blue | Canyon Neuron, Rugged full-suspension aluminium MTB frame with a perfectly balanced geometry for a confidence inspiring ride., Axle dimension: 12x148 mm, Material: Aluminium (AL) BB Standard: BSA, 73mm, Threaded Colors: Stealth; Flash Blue |
|---|---|---|
Fork | RockShox Judy Silver, 130mm, 130mm of front suspension. 29er fork. Boost 110 spacing. 30mm stanchions, TurnKey compression lockout, adjustable rebound damping Travel: 140mm Spring Type: Air | Rock Shox Recon Silver RL, Axle dimension: 15x110 mm, Stanchion Diameter: 32 mm, Travel: 140 mm, Fork steer tube diameter: 1 1/8" - 1,5", Weight: 5.51 lbs Travel: 140mm Spring Type: Air |
Shock | RockShox Deluxe Select+ | Rock Shox Deluxe Select +, Weight: 0.83 lbs |
Bottom Bracket | SRAM BSA DUB | SRAM DUB BSA, Bottom bracket standard: BSA 73, Weight: 0.19 lbs |
Stem | Iridium | Iridium Stem, Fork steer tube diameter: 1 1/8" |
Handlebar | Iridium Flatbar, Material: Aluminium, Rise: 5mm, Width for S and XS frames: 740 mm | Iridium Flatbar, Material: Aluminium, Rise: 5mm, Width for S and XS frames: 740 mm |
Saddle | Iridium Trail | Selle Italia X3, Gender: Unisex, Weight: 0.65 lbs |
Seatpost | Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter. | Iridium Dropper, Clamp diameter: 30,9 mm, Material: Aluminium (AL) |
Pedals | None included | None included |
Grips | Canyon EP111 Lock-On | Canyon Lock-On |
Rear Derailleur | SRAM SX Eagle, SRAM SX Eagle rear derailleur provides quick and quiet shifts across 10-50 or 11-50 tooth cassettes. | SRAM SX Eagle, Weight: 0.90 lbs |
|---|---|---|
Crank | SRAM SX Eagle DUB | SRAM SX Eagle, Number of chainrings: 1 |
Shifters | SRAM SX Eagle Trigger 12s, SX Eagle's 12-speed shifters offer quick and crisp gear changes. | SRAM SX Eagle, Weight: 0.29 lbs |
Cassette | SRAM PG-1210 Eagle 11-50 12s, SRAM's SX Eagle 11-50 cassette packs a wide, 454% gear range into a surprisingly affordable package. | SRAM PG-1230 Eagle 11-50 12s, Number of sprockets: 12 |
Chain | SRAM NX Eagle 12s | SRAM SX Eagle |
Brakes | Shimano MT200 | SRAM Level T |
Rims | Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Rodi TRYP 25/ Shimano MT410 S12 | Iridium 30, Axle dimension: 15x110 mm, Rotor mount: Center Lock, Inner width: 30 mm | Iridium 30, Axle dimension: 12x148 mm, Rotor mount: Center Lock, Inner width: 30 mm |
|---|---|---|
Tires | MAXXIS Dissector 2.4", The Dissector tire offers outstanding traction and control. | MAXXIS Rekon 2.4" | Schwalbe Nobby Nic 29x2.4 black skin, Width: 2.4" | Schwalbe Wicked Will 29"x2.4", Width: 2.4" |
Disc Rotors | Shimano RT10, Disc Mount: Centerlock | SRAM Centerline Rounded, Size: 180 mm, Weight: 0.43 lbs |
