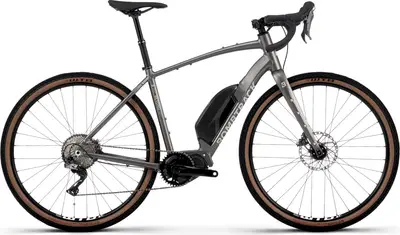

Compare: 2025 Bombtrack BEYOND E

Bikes up to 60% offWe monitor over 40,000 bikes daily to find the best prices

Bike Comparison

Only show differences

	BEYOND E2025 Bombtrack	Recommended

MSRP
Where to Buy	— $1 At
Category	Gravel, E-Bike
Weight	41.0 lbs
	5.4
Frame	Aluminum
	Carbon
Wheels	Aluminum
Wheel Size	27.5″ / 29″
Clearance	2.25"
	Shimano GRX 800 Hydraulic Disc
	Shimano 600W 85Nm mid-drive
	Shimano 630Wh
	GRX 800
Drivetrain	1 × 11
Brand Site	bombtrack.com
Summary	The Bombtrack BEYOND E is an aluminum frame gravel e-bike with high-end components and shimano grx 800 hydraulic disc brakes.

Ask 99 Spokes

Want to ask an actual human?

Get free advice from an Upway E-bike Expert

Similar Bikes

Insights

Ride Feel

Based on frame geometry and build specs.

Rider Position

relaxedaggressive

Terrain

smoothrugged

BEYOND E

Other Gravel bikes

Gear Range

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

30 mph

BEYOND E

Highest gear

(descending)

Geometry

Specs

	BEYOND E2025 Bombtrack

Frame	6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, stealth dropper ready, Shimano EP8 mid engine mount Tire Clearance: 2.25" Color: Matt Metallic Grey
Fork	Seido MGV full carbon, TA, 1.1/2'' - 1.1/8'', fender / triple cage mounts, 180 mm max rotor size, lowrider rack compatible, internal hub dynamo cable routing
Bottom Bracket	-
Headset	Sealed integrated aheadset, integrated cable routing, 1.1/2'' - 1.1/2''
Stem	Seido Chase forged aluminium stem, 0°
Handlebar	Seido Meridian gravel bar, 31.8 mm, 16° flare
Saddle	Bombtrack Fuzz saddle
Seatpost	KS E20i dropper seatpost, 31.6 mm, 100 mm travel, 362 mm length Type: Dropper
Pedals	-
Grips	Bombtrack Command bar tape

Groupset

Rear Derailleur	Shimano GRX RD-RX812, clutch
Front Derailleur	-
Crank	Shimano EP8 FC-EM900 hollow forged aluminium crank
Shifters	Shimano GRX ST-RX810-LA 1 x 11, spare shifter for dropper actuation
Cassette	Shimano Deore XT CS-M8000, 11-speed, 11 - 42 T
Chain	KMC X11 chain, 1/2'' x 11/128'', 116L
Brakes	Shimano GRX BR-RX810 flat mount hydraulic disc brakes Type: Shimano GRX 800 Hydraulic Disc

Wheels

Rims	Front: Seido Magnon i25 heavy duty asymmetric, tubeless ready, 32h, Rear: Seido Magnon i25 heavy duty asymmetric, tubeless ready, 32h
Front Hub	Seido Tau sealed hub, centerlock disc
Rear Hub	Seido Tau sealed hub, 11-speed, steel axle, centerlock disc
Tires	Front: WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' /, M - XL 29'' x 2.0'', tubeless ready, Rear: WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' /, M - XL 29'' x 2.0'', tubeless ready
Disc Rotors	Shimano SM-RT64 180 mm rotors

Electric Components

Motor	Shimano DU-EP801 mid-drive engine
Battery	Shimano BT-EN606 semi integrated battery, 630 Wh
Display	Shimano SC-EM800
Charger	Shimano EC-E8004-1

Accessories
