    ARISE2025 Bombtrack
    Recommended
    MSRP
    Where to Buy
    $1,567

    20% off At Campfire Cycling

    $1,799

    20% off At Campfire Cycling

    See more

    Category
    		Gravel
    Weight
    		25.1 lbs
    Frame
    		Steel
    		Steel
    Wheels
    		Aluminum
    Wheel Size
    		650b / 700c
    Clearance
    		42c (27.5″) / 42c (700c)
    		Tektro Mechanical Disc
    Drivetrain
    		1 × 8
    Brand Site

    bombtrack.com

    Summary

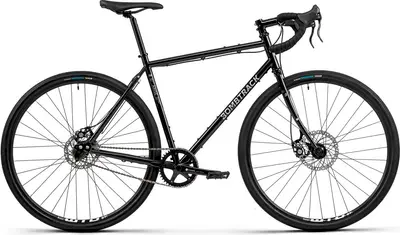

    		The Bombtrack ARISE is a steel frame gravel bike with tektro mechanical disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    ARISE
    Other Gravel bikes
    Geometry
    Specs
    ARISE2025 Bombtrack
    Frame

    4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell

    BB Standard: BSA, 68mm, Threaded

    Tire Clearance: 42c (27.5″) / 42c (700c)

    Color: Metallic Black

    Fork

    4130 crmo, TA, rack / fender mounts, internal hub, dynamo cable routing

    Bottom Bracket

    BSA sealed BB, external cups

    Headset

    Neco H282 sealed external aheadset, 1.1/8''

    Stem

    Bombtrack Roam forged aluminium stem, -7°

    Handlebar

    Seido CX-10 drop bar, 31.8 mm, 10° flare

    Saddle

    Bombtrack Fuzz saddle

    Seatpost

    Bombtrack Beech 27.2 mm x 300 mm

    Type: Rigid

    Pedals

    Wellgo B109N flat pedal

    Grips

    Bombtrack Control bar tape

    Groupset
    Rear Derailleur

    -

    Front Derailleur

    -

    Crank

    Bombtrack TAF19 aluminium crank, 24 mm spindle

    Shifters

    -

    Cassette

    16 T heat treated crmo, 1/2'' x 3/32''

    Chain

    KMC X8 chain, 1/2'' x 3/32'', 98L

    Brakes

    Tektro Mira post mount mechanic disc brakes

    Type: Tektro Mechanical Disc

    Wheels
    Rims

    Front: WTB ST i19 double wall, TCS 2.0, 32h, Rear: WTB ST i19 double wall, TCS 2.0, 32h

    Front Hub

    Bombtrack Arc sealed hub, 6-bolt disc

    Rear Hub

    Bombtrack Arc sealed hub, 11-speed, 6-bolt disc

    Tires

    Front: XS - S Vee Tire Speedster 650B x 38C /, M - XL Vee Tire Speedster 700C x 40C, Rear: XS - S Vee Tire Speedster 650B x 38C /, M - XL Vee Tire Speedster 700C x 40C

    Disc Rotors

    Tektro 180 mm front and 160 mm rear rotor

    Accessories
    Lights

    -

    Fenders

    -

    Racks

    -
