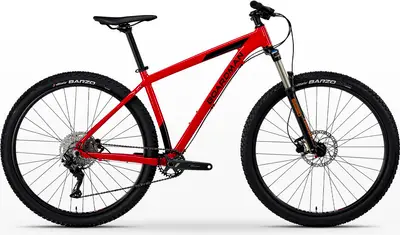

    MHT 8.6 Red2025 Boardman
    Recommended
    MSRP
    ($854)
    Where to Buy
    —
    $1

    At

    Category
    		Trail
    Weight
    		29.8 lbs
    4.4
    Frame
    		Aluminum
    		Suntour RAIDON
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Tektro Hydraulic Disc
    		Deore
    Drivetrain
    		1 × 10
    Suspension
    		Hardtail
    Front Travel
    		120mm
    Brand Site

    boardmanbikes.com

    Summary
    		The Boardman MHT 8.6 Red is a 29″ aluminum frame hardtail trail bike with upper mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    MHT 8.6 Red
    Other Trail bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    MHT 8.6 Red

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    MHT 8.6 Red2025 Boardman
    Frame

    Triple Butted 6061 X7 Aluminium with hidden welds

    BB Standard: BSA, 73mm, Threaded

    Fork

    Suntour Raidon XC LO-R, 120mm travel, air adjust

    Travel: 120mm

    Spring Type: Air

    Bottom Bracket

    Shimano Threaded BB or Prowheel

    Headset

    FSA no.10, 1 1/8”, Semi Integrated

    Stem

    Boardman Alloy, no rise, 31.8mm clamp

    Handlebar

    Boardman Alloy, 15mm rise, 9 degree bend, 31.8mm clamp

    Saddle

    Boardman MHT

    Seatpost

    Boardman Alloy, 31.6mm

    Type: Rigid

    Pedals

    Flat pedals supplied

    Groupset
    Rear Derailleur

    Shimano Deore 10 speed

    Front Derailleur

    N/A

    Crank

    Shimano Deore 32T or Prowheel

    Shifters

    Shimano Deore 10 speed

    Cassette

    Shimano Deore, 11-46

    Chain

    KMC X10

    Brakes

    Tektro M285, 6 bolt 180 mm rotor front, 160mm rotor rear

    Type: Tektro Hydraulic Disc

    Wheels
    Rims

    Boardman 29" with 25mm internal width rim

    Front Hub

    Formula 100mm QR front, 141mm Boost QR Rear

    Rear Hub

    Formula 100mm QR front, 141mm Boost QR Rear

    Tires

    Vittoria Barzo, 29x2.25”, wire bead
