    Arcadex GRX 8102020 Bianchi
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    5.8
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Shimano GRX 800 Hydraulic Disc
    		GRX 800
    Drivetrain
    		1 × 11
    Brand Site

    bianchi.com

    Summary

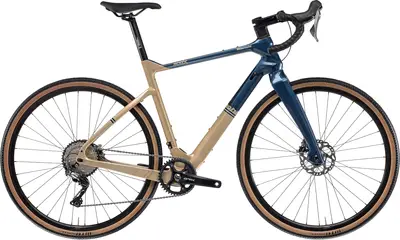

    		The Bianchi Arcadex GRX 810 is a carbon frame gravel bike with high-end components and shimano grx 800 hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    Arcadex GRX 810

    Highest gear

    (descending)

    Geometry
    Specs
    Arcadex GRX 8102020 Bianchi
    Frame

    Arcadex Carbon, 1.5" headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition, sizes: XS-SM-MD-LG-XL

    Fork

    Bianchi Full Carbon Disc, 1.5" head, flat mount caliper, thru axle 12x100mm

    Bottom Bracket

    Shimano SM-BB72-41B

    Headset

    Fsa SMR HS

    Stem

    Fsa ST-OS-188/SMR-0°, Alloy 6061, rise 0°, Ext: 80mm-XS/SM, 100mm-MD, 120mm-LG/XL

    Handlebar

    Aluminum 6061, reach 70mm, flare angle 16°, drop 120mmx40cm, 130mmx42/44cm, size: 40cm=XS/SM, 42cm=MD/LG, 44cm=XL

    Saddle

    Selle Royal 2315HRN, steel rail, open, 250x148mm

    Seatpost

    Reparto Corse Alloy 6061 shaft, alloy head, 15mm offset, 31,6mm, length: 300mm-47cm, 350mm-50/63cm

    Type: Rigid

    Grips

    La Spirale Ribbon cork

    Groupset
    Rear Derailleur

    Shimano GRX RD-RX812 11sp

    Crank

    Shimano GRX 810 FC-RX810-1 40T, Hollowtech II, Crank Length: 170mm-XS/SM, 172.5mm-MD/LG, 175mm-XL

    Shifters

    Shimano GRX 810 ST-RX810 1x11sp

    Cassette

    Shimano SLX CS-M7000, 11sp 11-13-15-17-19-21-24-28-32-37-42T

    Chain

    Kmc X11-1 EPT finish

    Brakes

    Shimano BR-RX810

    Type: Shimano GRX 800 Hydraulic Disc

    Brake Levers

    included w/shifters

    Wheels
    Rims

    AlexRims GD24 disc 622-21, tubeless ready

    Front Hub

    Shimano HB-RS470

    Rear Hub

    Shimano FH-RS470

    Tires

    WTB Riddler Race 700x37

    Disc Rotors

    Shimano SM-RT70, diam. 160mm
