    Arcadex Ekar2022 Bianchi
    Recommended
    MSRP
    $5,200
    Where to Buy
    —
    $1

    At

    Category
    		Gravel
    6.3
    Frame
    		Carbon
    		Carbon
    Wheels
    		Aluminum
    Wheel Size
    		700c
    		Campagnolo Hydraulic Disc
    		Ekar
    Drivetrain
    		1 × 13
    Brand Site

    bianchi.com

    Summary

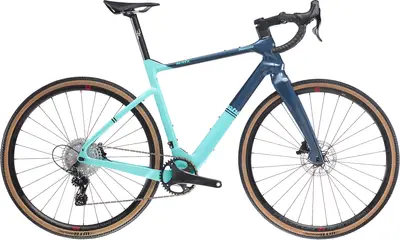

    		The Bianchi Arcadex Ekar is a carbon frame gravel bike with ultra high-end components and campagnolo hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Rider Position
    relaxedaggressive
    Terrain
    smoothrugged
    Arcadex Ekar
    Other Gravel bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    35 mph

    Arcadex Ekar

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Arcadex Ekar2022 Bianchi
    Frame

    "Arcadex CARBON 1.5"" aheaset,seat post 31.6mm, thru axle 12x142mm, flat mount disc version, Pressfit 41, compatible with 42mm tire and mudguard Sizes: XS-S-M-L-XL"

    BB Standard: BB86/BB92, 86mm, Press Fit

    Colors: Gx - Celeste Ck16 / Blue Note Glossy; Gy - Gold Storm / Blue Note Glossy

    Fork

    Full Carbon 1.5" flat mount, disc brake, thru axle 12x100mm

    Bottom Bracket

    Fsa BB-CF86/CZ Stainless bearing for Road carbon / alloy MegaExo crankset Press-Fit 86,5x41

    Headset

    FSA SMR HS with 1-1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8", 1.5", 36°/45° ACB, compressor ring 1.1/8"

    Stem

    Reparto Corse, Alloy 6061, 1 1/4", raise 0°,Oversize, plastic adaptor for hose cover 1 1/4", finish black; Ext: 80mm-XS -S, 100mm-M, 120mm-L/XL

    Handlebar

    Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm x size 42-44-46cm, size: 40cm=XS/S - 42cm=M/L - 44cm=XL

    Saddle

    Selle Italia ModelX Superflow FeC, lenght/wide 245x145mm

    Seatpost

    Reparto Corse Alloy shaft AL6061, alloy head, 15mm offset, 31,6mm, Length: 300mm/XS; 350mm/S-M-L-XL

    Type: Rigid

    Groupset
    Rear Derailleur

    Campagnolo EKAR 1x13sp

    Crank

    FSA Gossamer Pro BB386EVO 40T 1x13 Campy 13S 2-Tone Black B1 w/o BB, model No CK-6124S, Crank Length: 170mm-XS-S, 172.5mm-M-L, 175mm-XL

    Shifters

    Campagnolo EKAR

    Cassette

    Campagnolo EKAR 13sp 10-44T

    Chain

    Campagnolo EKAR 1x13 - 117

    Brakes

    Campagnolo included in the shifter

    Type: Campagnolo Hydraulic Disc

    Brake Levers

    included

    Wheels
    Rims

    Fulcrum Rapid Red 900 DB 2WF-R C22 AFS, alloy, 2-Way fit Ready, rim profile 24mm, width 27,1mm, 28 spokes, HH12- rear HH12/142 N3W

    Tires

    WTB Riddler Race 700 x 37c, Dual DNA Compound, 60tpi Casing, Aramid Bead, TCS light/fast rolling Tan sidewall

    Disc Rotors

    Campagnolo Rotor, AFS 160mm
