 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 25.6 lbs | |
| Carbon | ||
Fork | Fox Rhythm Float 32 | |
Wheels | Carbon | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | XT, SLX | |
Drivetrain | 1 × 12 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

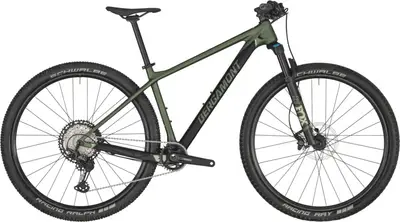

Summary | The Bergamont Revox Pro is a 29″ carbon frame hardtail crosscountry bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | 29", super lite SCM Carbon BB Standard: BB86/BB92, Press Fit Color: Pale Green / Black (Matt) | |
|---|---|---|
Fork | Fox 32 Rhythm, 100 mm, 15x110 mm axle | |
Bottom Bracket | Shimano BB-MT500, BB92, press-fit | |
Headset | BGM F13-C, A-Headset, semi-integrated, tapered | |
Stem | Syncros FL2.0, +/-6° | |
Handlebar | Syncros FL2.0, flatbar, width: 720 mm | |
Saddle | Syncros Tofino 2.5 | |
Seatpost | Syncros FL2.0 | |
Pedals | none | |
Grips | Syncros Pro, lock-on grips |
Rear Derailleur | Shimano Deore XT, RD-M8100, Shadow Plus | |
|---|---|---|
Crank | Shimano FC-MT610, 32t | |
Shifters | Shimano SLX, SL-M7100, 1x12 speed, rapidfire plus-shifter | |
Cassette | Shimano SLX, CS-M7100, 10-51t | |
Chain | Shimano SLX, CN-M7100 | |
Brakes | Shimano BR-MT500, hydraulic disc brake, SM-RT56 rotor: 180/160 mm | |
Brake Levers | Shimano BL-MT501, hydraulic disc brake |
Rims | Syncros Silverton 2.5, wheelset | |
|---|---|---|
Spokes | Syncros Silverton 2.5 | |
Front Hub | Syncros Silverton, 6-bolt, disc, 15x110 mm axle | |
Rear Hub | Syncros Silverton, Microspline, 6-bolt, disc, 12x148 mm axle | |
Tires | Front: Schwalbe Racing Ray, folding, Addix, 29x2.25" Rear: Schwalbe Racing Ralph, Addix, folding, 29x2.25" Tubes: Schwalbe SV19B Light |
