 | Recommended |
|---|
MSRP | ||
|---|---|---|
Where to Buy | — $1 At | |
Category | Crosscountry | |
Weight | 30.4 lbs | |
| Aluminum | ||
Fork | Suntour XCR | |
Wheels | Aluminum | |
| 29″ | ||
Brakes | Hydraulic Disc | |
Groupset | Deore | |
Drivetrain | 2 × 10 | |
Suspension | Hardtail | |
Front Travel | 100mm | |
Brand Site | ||

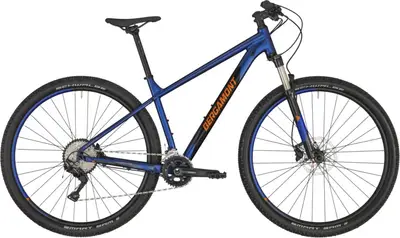

Summary | The Bergamont Revox 6 is a 29″ aluminum frame hardtail crosscountry bike with upper mid-range components. | |
Based on frame geometry and build specs.
Frame | 29" (27.5"), ultra lite AL-6061 tubing BB Standard: BSA, 73mm, Threaded Color: Atlantic Blue / Black/orange (Matt/shiny) | |
|---|---|---|
Fork | Suntour XCR32 RLR DS, 100 mm, remote lockout | |
Bottom Bracket | Shimano Hollowtech II, BSA | |
Headset | BGM FP-H807B, A-Headset, semi-integrated, 1 1/8" | |
Stem | Syncros 3.0, +/-6° | |
Handlebar | Syncros 3.0, riserbar, width: 700 mm | |
Saddle | Syncros M3.0 | |
Seatpost | Syncros 3.0 | |
Pedals | Wellgo LU895 | |
Grips | Syncros MTB |
Rear Derailleur | Shimano Deore, RD-M6000, Shadow Plus | |
|---|---|---|
Front Derailleur | Shimano Deore, FD-M6025 | |
Crank | Shimano FC-MT500, 36/26t | |
Shifters | Shimano Deore, SL-M6000, 2x10-speed, rapidfire plus-shifter | |
Cassette | Shimano CS-HG500, 11-42t | |
Chain | KMC X10 | |
Brakes | Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm | |
Brake Levers | Shimano BL-MT200, hydraulic disc brake |
Rims | Shining DB29, disc | |
|---|---|---|
Spokes | stainless, black | |
Front Hub | Shimano, centerlock, disc, quick release | |
Rear Hub | Shimano, centerlock, disc, quick release | |
Tires | Schwalbe Smart Sam, Kevlarguard, 29x2.10" (27.5x2.10") Tubes: Schwalbe SV19B Light (29") / SV21B Light (27.5") |
