Bike Comparison
    Revox 5 EQ2020 Bergamont
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		35.3 lbs
    3.5
    Frame
    		Aluminum
    Fork
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    Brakes
    		Hydraulic Disc
    Motor
    Battery
    Groupset
    		Deore, Alivio
    Drivetrain
    		3 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    bergamont.com

    Summary

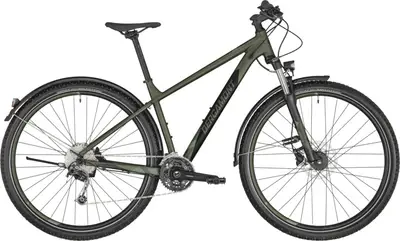

    		The Bergamont Revox 5 EQ is a 29″ aluminum frame hardtail crosscountry bike with mid-range components.
    Similar Bikes
    Accessories
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Revox 5 EQ
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    Revox 5 EQ

    Highest gear

    (descending)

    Geometry
    Specs
    Revox 5 EQ2020 Bergamont
    Frame

    29" (27.5"), ultra lite AL-6061 tubing

    BB Standard: BSA, 73mm, Threaded

    Color: Pale Green / Black (Matt)

    Fork

    Suntour XCM RL DS, 100 mm

    Bottom Bracket

    Shimano Hollowtech II, BSA

    Headset

    BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"

    Stem

    Syncros 3.0, +/-6°

    Handlebar

    Syncros 3.0, riserbar, width: 700 mm

    Saddle

    Syncros M3.0

    Seatpost

    Syncros 3.0

    Pedals

    Wellgo LU895

    Grips

    Syncros MTB

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M592, Shadow

    Front Derailleur

    Shimano FD-M4000

    Crank

    Shimano FC-MT300, 40/30/22t

    Shifters

    Shimano SL-M4000, 3x9-speed, rapidfire plus-shifter

    Cassette

    Shimano CS-HG201-9, 11-36t

    Chain

    KMC X9

    Brakes

    Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm

    Brake Levers

    Shimano BL-MT200, hydraulic disc brake

    Wheels
    Rims

    Shining DB29, disc

    Spokes

    stainless, black

    Front Hub

    Shimano dynamo hub, DH-3D37, centerlock, disc

    Rear Hub

    Shimano, centerlock, disc, quick release

    Tires

    Impac SmartPac, Kevlarguard, reflective stripe, 29x2.10" (27.5x2.10") Tubes: Schwalbe SV19B Light (29") / SV21B Light (27.5")

    Accessories
    Lights

    Front: Herrmans H-Black MR4, standlight Rear: Herrmans H-Trace Mini, standlight

    Fenders

    SKS, with stainless stays
