    Revox 52020 Bergamont
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		31.3 lbs
    3.9
    Frame
    		Aluminum
    		Suntour XCM
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Deore, Alivio
    Drivetrain
    		3 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    bergamont.com

    Summary

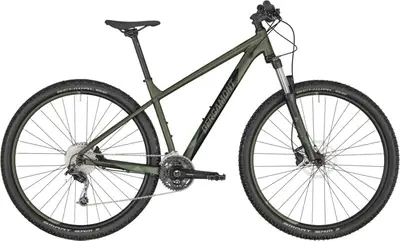

    		The Bergamont Revox 5 is a 29″ aluminum frame hardtail crosscountry bike with mid-range components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Ride Feel

    Based on frame geometry and build specs.

    Terrain
    easyextreme
    Handling
    nimblestable
    Revox 5
    Other Crosscountry bikes
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    31 mph

    Revox 5

    Highest gear

    (descending)

    Geometry
    Specs
    Revox 52020 Bergamont
    Frame

    29" (27.5"), ultra lite AL-6061 tubing

    BB Standard: BSA, 73mm, Threaded

    Color: Pale Green / Black (Matt)

    Fork

    Suntour XCM RL DS, 100 mm

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    Shimano Hollowtech II, BSA

    Headset

    BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"

    Stem

    Syncros 3.0, +/-6°

    Handlebar

    Syncros 3.0, riserbar, width: 700 mm

    Saddle

    Syncros M3.0

    Seatpost

    Syncros 3.0

    Type: Rigid

    Pedals

    Wellgo LU895

    Grips

    Syncros MTB

    Groupset
    Rear Derailleur

    Shimano Deore, RD-M592, Shadow

    Front Derailleur

    Shimano FD-M4000

    Crank

    Shimano FC-MT300, 40/30/22t

    Shifters

    Shimano SL-M4000, 3x9-speed, rapidfire plus-shifter

    Cassette

    Shimano CS-HG201-9, 11-36t

    Chain

    KMC X9

    Brakes

    Shimano BR-MT200, hydraulic disc brake, SM-RT10 rotor: 180/160 mm

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT200, hydraulic disc brake

    Wheels
    Rims

    Shining DB29, disc

    Spokes

    stainless, black

    Front Hub

    Shimano, centerlock, disc, quick release

    Rear Hub

    Shimano, centerlock, disc, quick release

    Tires

    Schwalbe Smart Sam, Kevlarguard, 29x2.10" (27.5x2.10") Tubes: Schwalbe SV19B Light (29") / SV21B Light (27.5")
