    Revox 42022 Bergamont
    Recommended
    MSRP
    ($924)
    Where to Buy
    —
    $1

    At

    Category
    		Crosscountry
    Weight
    		32.4 lbs
    3.4
    Frame
    		Aluminum
    		Suntour XCT
    Wheels
    		Aluminum
    Wheel Size
    		29″
    		Shimano Hydraulic Disc
    		Altus
    Drivetrain
    		2 × 9
    Suspension
    		Hardtail
    Front Travel
    		100mm
    Brand Site

    bergamont.com

    Summary

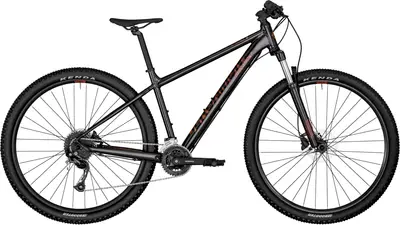

    		The Bergamont Revox 4 is a 29″ aluminum frame hardtail crosscountry bike with modest components.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from a Gear Advisor at Jenson USA

    Text a Gear Advisor
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    28 mph

    Revox 4

    Highest gear

    (descending)

    Spec Level

    Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

    Geometry
    Specs
    Revox 42022 Bergamont
    Frame

    29" (27.5"), lite AL-6061 tubing

    BB Standard: BSA, 73mm, Threaded

    Color: Flaky Black (Shiny)

    Fork

    Suntour XCT30 HLO DS, 100 mm

    Travel: 100mm

    Spring Type: Coil

    Bottom Bracket

    Shimano BB-UN101, BSA

    Headset

    BGM FP-H807B, A-Headset, semi-integrated, 1 1/8"

    Stem

    BGM Comp, +/-6°

    Handlebar

    BGM Comp, riserbar, width: 700 mm

    Saddle

    Syncros Tofino 2.5

    Seatpost

    BGM Comp

    Type: Rigid

    Pedals

    Feimin FP-803

    Grips

    Syncros MTB

    Groupset
    Rear Derailleur

    Shimano RD-M2000, Shadow

    Front Derailleur

    Shimano FD-M2020

    Crank

    Shimano FC-MT101, 36/22t

    Shifters

    Shimano SL-M2010, 2x9-speed, rapidfire plus-shifter

    Cassette

    Shimano CS-HG200-9, 11-36t

    Chain

    KMC X9

    Brakes

    Shimano BR-MT200, hydraulic disc brake

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT200, hydraulic disc brake

    Wheels
    Rims

    Alex X20, disc, width: 20 mm

    Spokes

    steel, black

    Front Hub

    Shimano, centerlock, disc, quick release

    Rear Hub

    Shimano, centerlock, disc, quick release

    Tires

    Front: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Impac SV29, Rear: Kenda Booster, 29x2.40" (27.5x2.40") Tube: Impac SV27

    Disc Rotors

    Shimano SM-RT10, 160 mm
