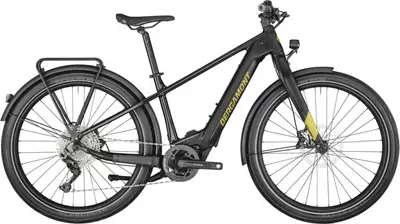

    E-Revox Rigid EQ2021 Bergamont
    Recommended
    MSRP
    Where to Buy
    —
    $1

    At

    Category
    		Commuter, E-Bike
    Weight
    		53.1 lbs
    7.9
    Frame
    		Aluminum
    Wheels
    		Aluminum
    Wheel Size
    		650b
    		Shimano Hydraulic Disc
    		Bosch 250W 85Nm mid-drive
    		Bosch 625Wh
    		XT, Deore
    Drivetrain
    		1 × 11
    Brand Site

    bergamont.com

    Summary
    		The Bergamont E-Revox Rigid EQ is a 650b aluminum frame commuter e-bike with high-end components and shimano hydraulic disc brakes.

    Ask 99 Spokes

    Want to ask an actual human?

    Get free advice from an Upway E-bike Expert

    Shop with an Expert
    Similar Bikes
    Insights
    Gear Range

    A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

    Lowest gear

    (climbing)

    25 mph

    E-Revox Rigid EQ

    Highest gear

    (descending)

    Geometry
    Specs
    E-Revox Rigid EQ2021 Bergamont
    Frame

    27.5", ultra lite AL-6061 tubing, PowerTube battery

    BB Standard: Bosch, Press Fit

    Color: Black Gold Dust (Shiny / Matt)

    Fork

    BGM MTB rigid fork

    Bottom Bracket

    Bosch, Isis

    Headset

    BGM F13-X, A-Headset, semi-integrated, tapered

    Stem

    Syncros FL2.0, +/-6°

    Handlebar

    Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm / 720 mm for size S

    Saddle

    Ergon SM10 E-Mountain

    Seatpost

    Syncros M3.0

    Type: Rigid

    Pedals

    none

    Grips

    Ergon GA20

    Groupset
    Rear Derailleur

    Shimano Deore XT, RD-M8000, Shadow Plus

    Crank

    FSA CK-320, 34t, 170 mm

    Shifters

    Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter

    Cassette

    Shimano XT, CS-M8000, 11-46t

    Chain

    KMC e11S

    Brakes

    Shimano BR-MT420, hydraulic disc brake, 4-piston, SM-RT30 rotor: 203/180 mm

    Type: Shimano Hydraulic Disc

    Brake Levers

    Shimano BL-MT201, hydraulic disc brake

    Wheels
    Rims

    Alex EXR30, disc, eyelets, width: 30 mm

    Spokes

    Sapim Leader

    Front Hub

    Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle

    Rear Hub

    Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle

    Tires

    Schwalbe Super Moto, Performance, 27.5x2.40" Tubes: Schwalbe SV21B

    Electric Components
    Motor

    Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)

    Battery

    Motor: Bosch Drive Unit Performance Line CX Cruise, Gen. 4, 250 W, 36 V, max. 25 km/h Display: Bosch Purion Battery: Bosch 36 V Li Ion, 625 Wh, PowerTube Assistance Modes: Eco (+60%), Tour (+140%), eMTB (+140 - 340%), Turbo (+340%), Walk Assist (-5 km/h)

    Accessories
    Lights

    Front: Litemove SE, 70 Lux, LED, E-Bike Version Rear: Herrmans H-Trace Mini, LED

    Fenders

    Curana Apollo, with stainless stays

    Racks

    New Racktime / BGM carrier
